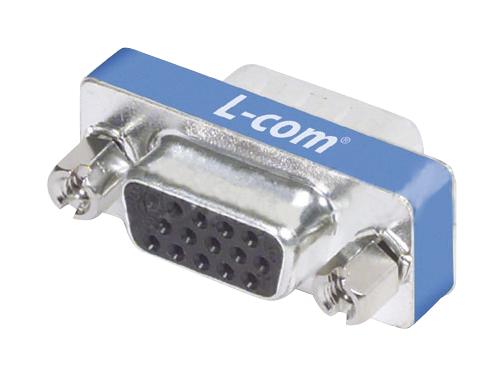

L-COM DGBV15F High-Density D-Sub Connector
This high-density 15-pin female D-sub connector features a rugged steel shell with tin/nickel plating and gold flash contacts for optimal conductivity. Suitable for panel mounting with a maximum panel thickness of 0.06 inches, it operates within an temperature range of -55°C to +105°C. The component is UL94V-0 rated and conforms to CE2011/65/EU RoHS standards. With a current rating of 3 amps, the connector includes brass hardware, PBT fiber-reinforced insulators, and all contacts wired straight through, ensuring reliable data and signal transmission in industrial and electronic applications.
L-COM DGBV15F High-Density D-Sub Connector Specifications:
- Shell Material: Steel, Tin/Nickel Plated
- Contacts Material: Copper Alloy, Gold Flash Plated
- Hardware: Brass, Nickel Plated
- Insulator: PBT Fiber-Reinforced, UL94V-0 Rated
- Current Rating: 3 Amp
- Operating Temperature Range: -55°C to +105°C
- Maximum Panel Thickness: 0.06 inches
- Connector Type: D-Sub 15-pin Female, High Density
- Rated Voltage: Not specified
- Certification: UL Listed, CE2011/65/EU RoHS
- Packaging: Individually packaged according to L-Com PS-0031
Buy the L-Com Series D-Sub 15-pin Female Connector: DGBV15F
Order the L-Com high-density 15-pin female D-Sub connector online today. Designed with a steel shell, gold flash contacts, and UL94V-0 rated insulators, this connector provides secure and high-quality connections for industrial, electronic, and communication systems. It supports panel mounting up to 0.06 inches thick and operates from -55°C to +105°C for versatile use in harsh environments. With a current capacity of 3 amps and RoHS compliance, it ensures durability and safety for your critical applications.
Get L-Com DGBV15F today—built for reliable signal transmission and durable industrial performance.
Frequently Asked Questions
Where can I buy L-COM DGBV15F?
You can click on the BUY or RFQ button to purchase DGBV15F from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part DGBV15F?
You can download the DGBV15F datasheet or visit the L-COM website for support.
Who is the manufacturer of DGBV15F?
L-COM
