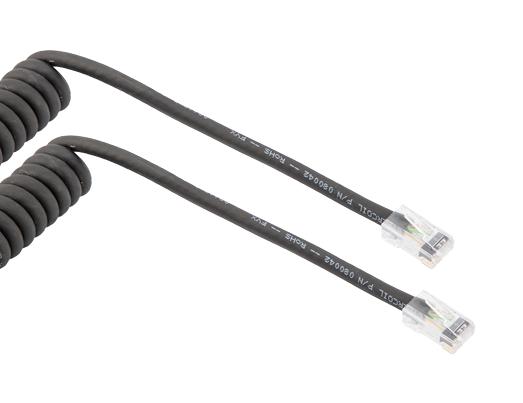

L-COM TRD815CH13F telecom cable
The product is a high-quality twisted pair cable with a polyethylene insulation, suitable for telecom and industrial applications. It features four twisted pairs, a polyurethane jacket in black, and a temperature rating from -20°C to 60°C. The cable exhibits a maximum voltage of 300V, dielectric withstand of at least 1500V RMS, and a D.C. resistance of 42.6 ohms per 1000 feet. Ideal for secure, reliable wiring in demanding environments requiring consistent electrical performance and durability.
L-COM TRD815CH13F telecom cable Specifications:
- Conductor: 26AWG 7/.0068 stranded tinned copper
- Insulation: High-density polyethylene, .008'' wall thickness, maximum diameter .0365''
- Cable construction: 4 twisted pairs, color coded, with separator tape
- Jacket: Polyurethane, black, .040'' wall thickness
- Overall diameter: .240'' nominal
- Temperature Rating: -20°C to 60°C
- Voltage Rating: Max 300V
- Dielectric Withstanding Voltage: Min. 1500V RMS
- DC Resistance: Max 42.6 ohms per 1000 ft
- Color Code: White/Blue, White/Orange, White/Green, White/Brown
- Maximum length per coil: 18 feet
- Application: Telecom, industrial wiring, modular connection
- Certifications: RoHS compliant
Buy the Lom TRD815CH13F – Reliable Telecom Cable for Industrial Applications
Purchase Lom TRD815CH13F cable directly online and enjoy secure, high-performance wiring solutions for industrial and telecom setups. This twisted pair cable combines polyethylene insulation with a durable polyurethane jacket, ensuring long-lasting reliability in challenging environments. Featuring four twisted pairs and a maximum voltage of 300 volts, it is ideal for modular and industrial applications. Easy to handle, customizable lengths up to 18 feet, RoHS compliant, and capable of withstanding voltages up to 1500V RMS dielectric withstand, this cable guarantees dielectrical safety and optimal electrical performance in demanding applications.
Get Lom TRD815CH13F today—built for precision with flexible, durable construction for demanding industrial and telecom wiring.
Frequently Asked Questions
Where can I buy L-COM TRD815CH13F?
You can click on the BUY or RFQ button to purchase TRD815CH13F from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TRD815CH13F?
You can download the TRD815CH13F datasheet or visit the L-COM website for support.
Who is the manufacturer of TRD815CH13F?
L-COM
