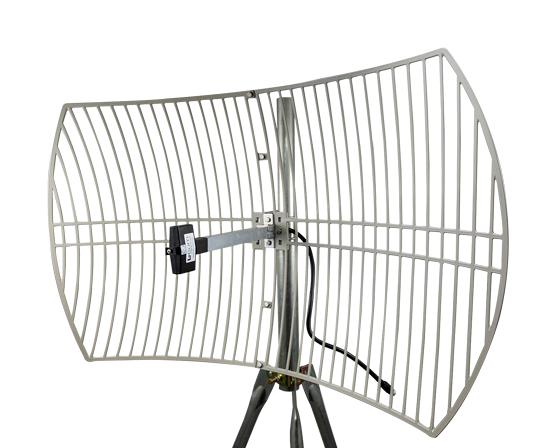

L-COM HG1922EG1NF Grid Antenna
The L-com HG1922EG-1-NF is a lightweight, high-performance grid antenna designed for long-range directional wireless systems operating from 1920 to 2170 MHz. Made from durable die-cast aluminum with UV-resistant powder coating, it offers 22 dBi gain, an 8° horizontal beamwidth, and a 13° vertical beamwidth, ideal for cellular backhaul and point-to-point or multipoint applications. The antenna features Type N female connectors and can withstand wind speeds up to 124 MPH, making it suitable for harsh outdoor environments. Easy to assemble, it includes mounting hardware for hassle-free installation.
L-COM HG1922EG1NF Grid Antenna Specifications:
- Frequency Range: 1920-2170 MHz
- Gain: 22 dBi
- Horizontal Beamwidth: 8°
- Vertical Beamwidth: 13°
- Input Power: 100 Watts
- Impedance: 50 Ohms
- VSWR: 1.5:1
- Front to Back Ratio: 30 dB
- Connector: Type N Female
- Size: Length 23.622 in, Width 38.976 in, Height 50 in
- Mounting Mast Diameter: 1.57 to 1.96 in
- Weight: 5.51 lbs
- Operating Temperature: -40°C to +70°C
- Wind Survivability: 124 MPH
- Humidity Range: 5% to 95%
- Construction: Die-cast aluminum, UV stable powder coat
Buy the Buy L-com HG1922EG-1-NF Part Number HG1922EG-1-NF Online
Purchase the L-com HG1922EG-1-NF lightweight grid antenna online today to take advantage of quick same-day shipping. It offers 22 dBi gain, excellent for cellular backhaul, point-to-point, and multipoint long-range systems. The durable die-cast aluminum construction with UV-stable powder coating ensures weather resistance and longevity in outdoor environments. Easy to install with included hardware, this antenna features Type N female connectors, a compact size, and operates effectively from 1920 to 2170 MHz. Perfect for those seeking robust performance and high reliability in wireless infrastructure.
Order your L-com HG1922EG-1-NF high-gain grid antenna today and enhance your long-range wireless connectivity with reliability and ease.
