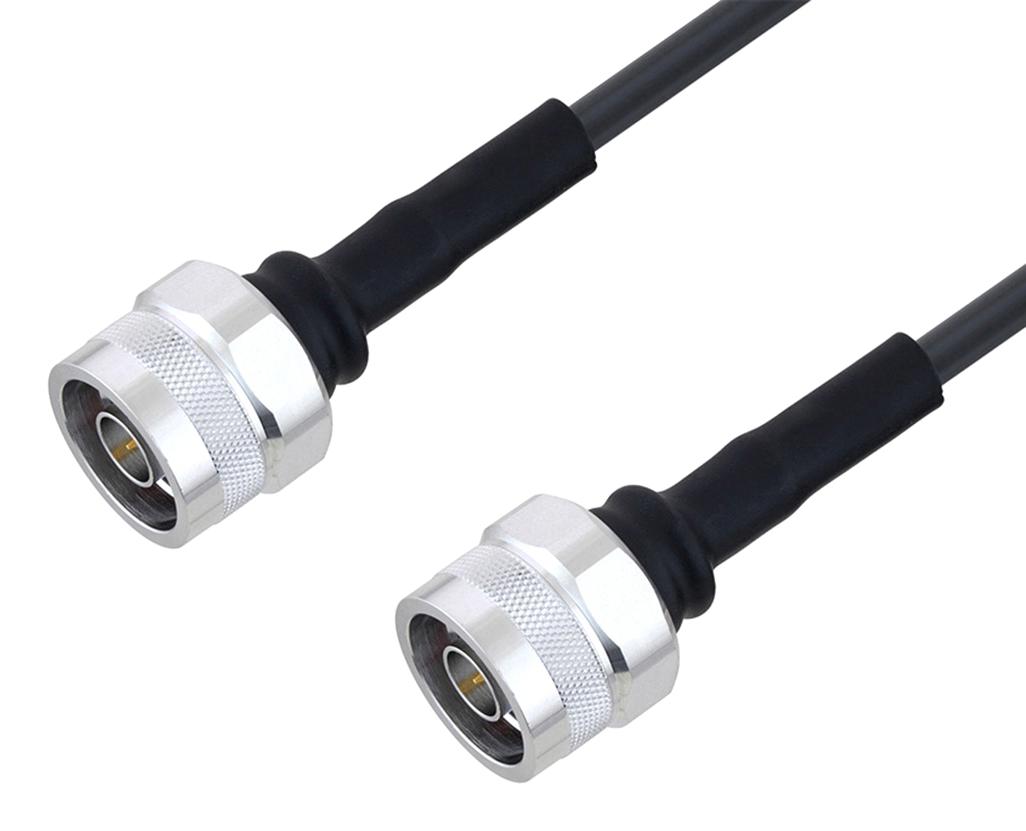

L-COM LCCA30153FT15 RF Coaxial Cable Assembly
L-com's LCCA30153-FT1.5 is a low loss N male to N male cable assembly using LMR-195 coax, 1.5 FT with Times Microwave components. It features a PE dielectric with 80% VoP, providing very low insertion loss and excellent flexibility for applications like radio, Wi-Fi, and antenna systems. The cable has double shielding with tinned copper braid over aluminum tape, offering over 90 dB shielding effectiveness. Operating up to 5.8 GHz, this assembly is ideal for high-frequency, low-loss connections demanding durability and precise performance.
L-COM LCCA30153FT15 RF Coaxial Cable Assembly Specifications:
- Frequency Range: 0.25 to 5.8 GHz
- Velocity of Propagation: 80%
- RF Shielding: 90 dB
- Insertion Loss (Typ.): 0.29 to 0.64 dB depending on frequency
- Capacitance: 25.4 pF/ft
- Inductance: 0.064 uH/ft
- DC Resistance Inner Conductor: 7.6 Ohms/1000ft
- DC Resistance Outer Conductor: 4.9 Ohms/1000ft
- Jacket Material: PE, Black
- Jacket Diameter: 0.195 in
- Impedance: 50 Ohms
- Connector Type: N Male to N Male
- Maximum Bend Radius: 2 in
- Operating Temperature Range: -40°C to +85°C
- Shield Layers: Aluminum Tape, Tinned Copper Braid
- Cable Length: 1.5 ft
Buy the INFINITG Series RF Coaxial Cable: LCCA30153
Order the INFINITG LCCA30153-FT1.5 low loss N male to N male coaxial cable assembly online today for reliable, high-performance connections. This 1.5 ft cable features LMR-195 coax with Times Microwave components designed for frequencies up to 5.8 GHz. Its double shielding provides better than 90 dB RF shielding, minimizing noise and signal loss. The cable’s flexible design and durable PE jacket make it suitable for antenna, radio, Wi-Fi, and other communication systems demanding excellent signal integrity, low insertion loss, and high durability. Optimize your setup with fast delivery and trusted quality.
Get INFINITG LCCA30153-FT1.5 today—built for precision, low-loss signal transmission, and long-lasting durability in high-frequency communication systems.
Frequently Asked Questions
Where can I buy L-COM LCCA30153FT15?
You can click on the BUY or RFQ button to purchase LCCA30153FT15 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30153FT15?
You can download the LCCA30153FT15 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30153FT15?
L-COM
