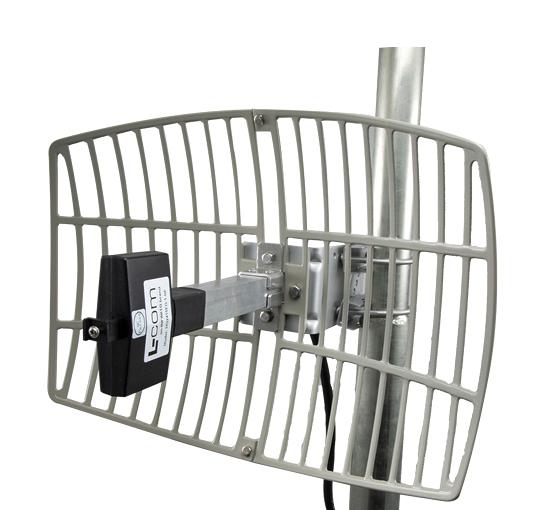

L-COM HG2415EG1NF Directional Grid Antenna
The L-com HG2415EG-1-NF is a lightweight, high-performance reflector grid antenna designed for long-range wireless applications. Operating from 2400 to 2500 MHz, it offers 13 to 15 dBi gain, ideal for WLAN backhaul, Wi-Fi systems, wireless bridges, point-to-point, and multi-point networks. Constructed of die-cast aluminum with UV-stable powder coating, it features a Type N female connector, a 21° vertical and 16° horizontal beamwidth, and supports up to 100 Watts power. Easy to assemble and mount, it withstands harsh environments with a wind survivability of 124 MPH and operates from -40°C to +70°C.
L-COM HG2415EG1NF Directional Grid Antenna Specifications:
- Frequency Range: 2400 to 2500 MHz
- Gain: 15 dBi
- Input VSWR: 1.5:1
- Impedance: 50 Ohms
- Front to Back Ratio: 20 dB
- Horizontal Beamwidth: 16°
- Vertical Beamwidth: 21°
- Input Power: 100 Watts
- Size: Length 14.811 in, Width 15.748 in, Height 20 in
- Mounting Mast Diameter: 1.57 to 1.96 in
- Weight: 3.08647 lbs (1.4 kg)
- Operating Temperature: -40°C to +70°C
- Wind Survivability: 124 MPH
- Humidity Range: 5% to 95%
- Connector Type: N Female
- Material: Die-cast aluminum with UV-stable powder coat finish
Buy the Buy Infinite Electronics HG2415EG1NF Part Number HG2415EG-1-NF Online
Order the Infinite Electronics HG2415EG-1-NF antenna today to enhance your wireless system with superior long-range performance. Designed for 2.4 GHz applications, it features 15 dBi gain, durable die-cast aluminum construction, and a lightweight design for easy installation. With its UV-stable powder coating, it withstands harsh environmental conditions. Supporting up to 100 Watts, this antenna with Type N female connector is perfect for WLAN backhaul, wireless bridges, point-to-point, and multi-point systems. Same-day shipping available for rapid deployment.
Buy Infinite Electronics HG2415EG-1-NF now and experience exceptional long-range wireless performance and durability with this high-gain directional antenna.
