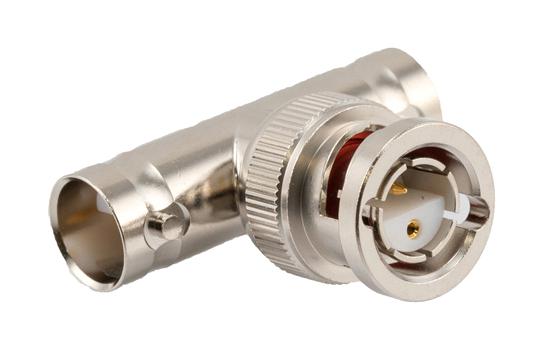

L-COM LCAD30023 BNC Twinax Adapter
This BNC Twinax Tee adapter with 78 Ohm impedance connects BNC Twinax cables in series, ideal for differential pair applications. Crafted from brass with a nickel finish, it features gold-plated center contacts and a bayonet coupling mechanism for secure connections. Its compact size measures 1.28 inches in length and 1.03 inches in width, supporting operating voltages up to 500 Vrms and dielectric withstand voltage of 1,500 Vrms. Suitable for high-frequency RF applications, it ensures reliable transmission with excellent insulation resistance of 5,000 MOhms across operating temperatures ranging from -65°C to +165°C.
L-COM LCAD30023 BNC Twinax Adapter Specifications:
- Impedance: 78 Ohm
- Operating Voltage (AC): 500 Vrms
- Dielectric Withstanding Voltage (AC): 1,500 Vrms
- Insulation Resistance: 5,000 MOhms
- Size: Length 1.28 inches, Width 1.03 inches
- Material: Brass, Nickel plated
- Center Contact: Gold-plated brass
- Insulation Material: PTFE
- Outer Conductor: Brass, Nickel
- Temperature Range: -65°C to +165°C
- Coupling: Bayonet design
- Application: RF coaxial, differential pair signals
Buy the L-com Series RF Coaxial 78 Ohm BNC Twinax Tee: LCAD30023
Secure your RF connections efficiently with the L-com BNC Twinax Adapter. Designed with high-quality brass and nickel finish, it supports up to 500 Vrms and withstands -65°C to +165°C. Perfect for differential pair applications, its bayonet coupling ensures a reliable fit. Compact size and high insulation resistance make it ideal for demanding environments. Order online today to benefit from same-day shipping and enhance your RF system’s performance with this durable and precise adapter.
Buy L-com LCAD30023 now and experience unmatched reliability and performance in RF coaxial connections with high-voltage and temperature tolerance.
Frequently Asked Questions
Where can I buy L-COM LCAD30023?
You can click on the BUY or RFQ button to purchase LCAD30023 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCAD30023?
You can download the LCAD30023 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCAD30023?
L-COM
