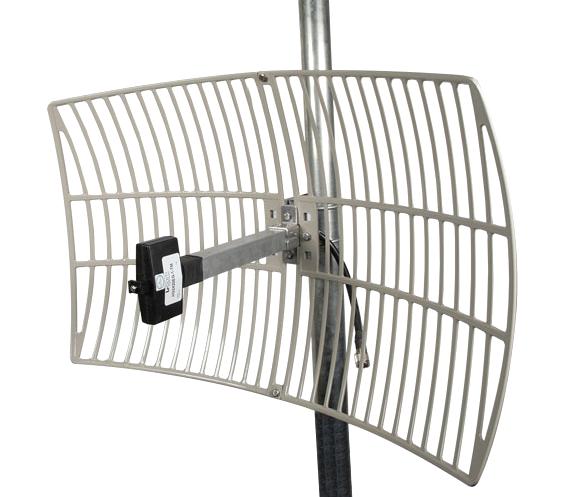

L-COM HG2420EG1NM Wireless Grid Antenna
The L-com HG2420EG-1-NM is a lightweight, high-performance reflector grid antenna designed for long-range point-to-point systems, wireless bridges, and WLAN backhaul applications. Operating from 2400 to 2500 MHz, it offers 20 dBi gain with a 16° vertical and 12° horizontal beamwidth, suitable for 2.4 GHz ISM band Wi-Fi systems. Made from die-cast aluminum with UV-stable finish, it features a Type N male connector, secure mounting hardware, and is optimized for easy installation and durability in all weather conditions, supporting high-power operation up to 100 Watts.
L-COM HG2420EG1NM Wireless Grid Antenna Specifications:
- Frequency Range: 2400 to 2500 MHz
- Gain: 20 dBi
- Impedance: 50 Ohms
- VSWR: 1.5:1
- Front to Back Ratio: 25 dB
- Horizontal Beamwidth: 12°
- Vertical Beamwidth: 16°
- Connector: N Male
- Size: Length 16.535 in, Width 24.803 in, Height 31 in
- Mounting Mast Diameter: 1.57 to 1.96 in
- Weight: 5.29 lbs (2.4 kg)
- Operating Temperature: -40°C to +70°C
- Wind Survivability: 124 MPH
- Humidity Range: 5% to 95%
- Materials: Die-cast aluminum, UV resistant finish
- Input Power: 100 Watts
Buy the L-com HG2420EG-1-NM – Reliable Wireless Grid Antenna for Industrial Applications
Purchase the L-com HG2420EG-1-NM online today to elevate your wireless communication setup. This lightweight, weatherproof grid antenna delivers 20 dBi gain, optimized for 2.4 GHz Wi-Fi backhaul, wireless bridges, and point-to-point applications. Featuring a durable die-cast aluminum construction with UV-stable finish, it ensures reliable performance in all weather conditions. The included mounting hardware makes installation quick and easy, supporting high power up to 100 Watts. Get fast shipping and trusted quality for your industrial and enterprise wireless projects.
Order your L-com HG2420EG-1-NM today and enhance your long-range wireless systems with this durable, high-gain antenna designed for industrial needs.
Frequently Asked Questions
Where can I buy L-COM HG2420EG1NM?
You can click on the BUY or RFQ button to purchase HG2420EG1NM from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part HG2420EG1NM?
You can download the HG2420EG1NM datasheet or visit the L-COM website for support.
Who is the manufacturer of HG2420EG1NM?
L-COM
