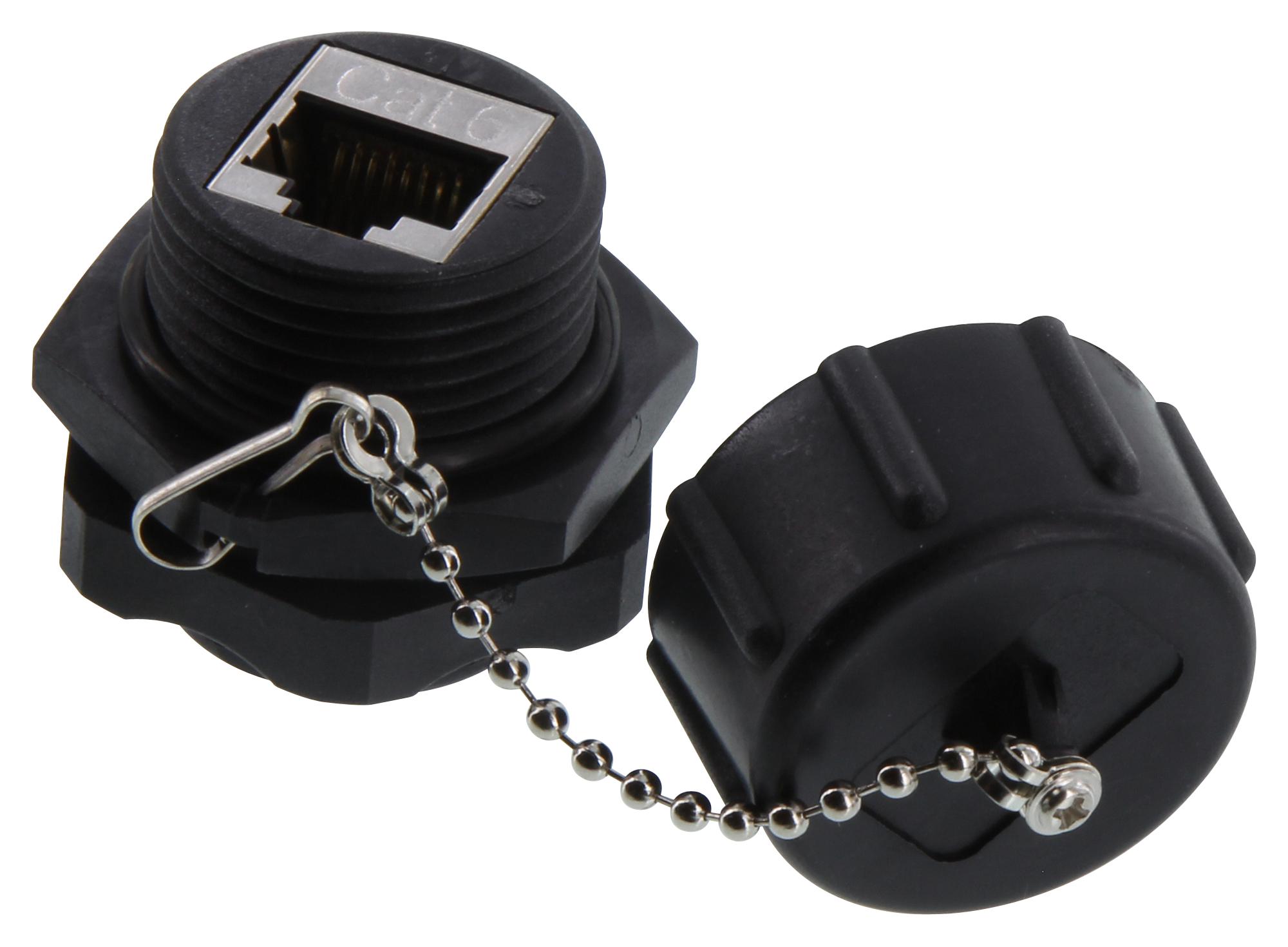

L-COM WPBHC6 Ethernet Connector
This shielded Ethernet connector features a durable PBT + GF main body, nickel-plated brass shielded case, and ABS coupler housing. It offers IP67 protection when dust cap is engaged, with an operating temperature range of -10°C to +60°C and storage from -40°C to +68°C. Designed for high durability, it supports 750 mating cycles, 1.5A DC current, and withstands 1000 V AC insulation voltage. Suitable for industrial, military, and telecommunications uses, it ensures reliable electrical performance with low contact resistance and robust construction.
L-COM WPBHC6 Ethernet Connector Specifications:
- Main Material: PBT + GF, UL94V-0
- Shielded Case Material: Brass, Nickel Plated
- Coupler Housing: ABS, UL94V-0
- Insertions Life: 750 mating cycles
- Contact Force: 100 grams
- Plug Retention Force: 11LBF minimum
- Operating Temperature Range: -10°C to +60°C
- Storage Temperature Range: -40°C to +68°C
- Humidity: 10% to 90% RH
- IP Rating: IP67 when dust cap is engaged
- Insulation Resistance: 500 MΩ
- Dielectric Withstanding Voltage: 1000 V AC
- DC Current Rating: 1.5 Amps
- DC Resistance: 0.1Ω
- Contact Resistance: 20mΩ
Buy the L-Com Series Ethernet Connector: WPBHC6
Purchase the L-Com Series WPBHC6 Ethernet connector online today for robust connectivity in industrial, military, and telecommunications applications. This high-quality shielded connector offers IP67 protection, ensuring reliable performance even in tough environments. Its durable construction supports 750 mating cycles and handles 1.5A current, making it ideal for data communication needs. Easy to install, with excellent electrical resistance and robust materials, this connector guarantees long-lasting performance and easy integration into your projects, providing the dependable connectivity you need.
Order your L-Com Series WPBHC6 IP67 Shielded Ethernet Connector today and ensure reliable data communication in harsh environments.
Frequently Asked Questions
Where can I buy L-COM WPBHC6?
You can click on the BUY or RFQ button to purchase WPBHC6 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part WPBHC6?
You can download the WPBHC6 datasheet or visit the L-COM website for support.
Who is the manufacturer of WPBHC6?
L-COM
