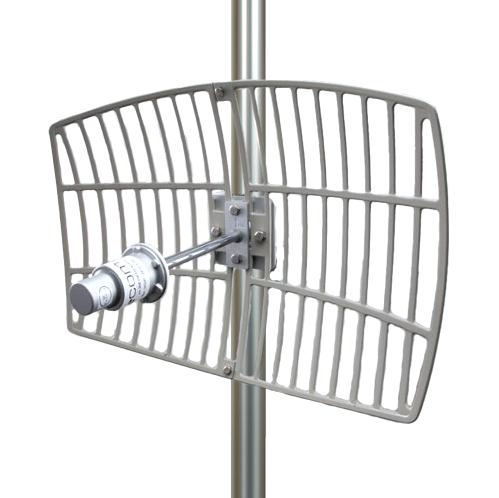

L-COM HG4922EG1NF Wireless Grid Antenna
The L-com HG4922EG-1-NF is a lightweight, high-gain grid antenna designed for long-range wireless applications in the 4.9 GHz to 5.8 GHz frequency range. Constructed from die-cast aluminum with a UV-stable powder coat finish, it features a 22 dBi gain, 12° vertical and 9° horizontal beamwidth, and Type N female connectors. Ideal for point-to-point and multipoint systems, it offers easy assembly with mounting hardware, operates in all weather conditions with wind survivability of 124 MPH, and is suitable for WLAN backhaul, long-range directional links, and 5 GHz wireless LAN systems.
L-COM HG4922EG1NF Wireless Grid Antenna Specifications:
- Frequency Range: 4.9 GHz to 5.85 GHz
- Gain: 22 dBi
- Front to Back Ratio: 20 dB
- Horizontal HPBW: 9 Degrees
- Vertical HPBW: 12 Degrees
- Input VSWR: 1.5:1
- Impedance: 50 Ohms
- Input Power: 100 Watts
- Size (L x W x H): 14.811 in x 15.748 in x 20 in
- Mounting Mast Diameter: 1.57 to 1.96 in
- Weight: 3.086 lbs
- Operating Temperature: -40°C to +70°C
- Wind Survivability: 124 MPH
- Humidity Range: 5% to 95%
- Finish: UV-stable powder coat
- Connector Type: N female
- Construction: Die-cast aluminum
Buy the L-com Series HG4922EG 4.9 GHz to 5.8 GHz Wireless Antenna: HG4922EG1NF
Order the L-com HG4922EG-1-NF today to enhance your long-range wireless connectivity. This high-gain, lightweight antenna is perfect for point-to-point and multipoint systems operating in the 4.9 to 5.8 GHz range. Its durable die-cast aluminum construction with UV-resistant coating ensures reliable outdoor performance. Easy to install with included mounting hardware, it offers a 22 dBi gain, a wide beamwidth, and weather resistance up to wind speeds of 124 MPH. Optimize your WLAN backhaul or long-range links now.
Get L-com HG4922EG-1-NF today—built for precision and long-lasting durability in demanding outdoor environments.
Frequently Asked Questions
Where can I buy L-COM HG4922EG1NF?
You can click on the BUY or RFQ button to purchase HG4922EG1NF from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part HG4922EG1NF?
You can download the HG4922EG1NF datasheet or visit the L-COM website for support.
Who is the manufacturer of HG4922EG1NF?
L-COM
