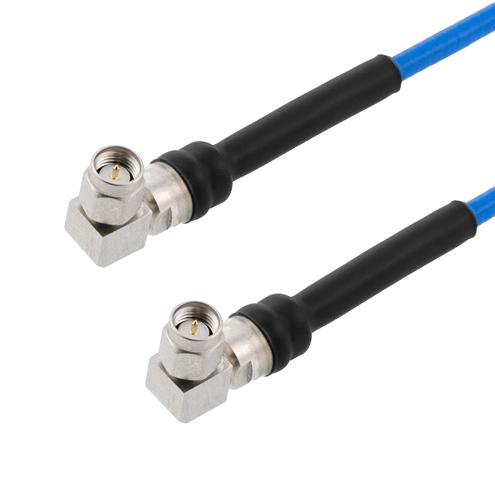

L-COM LCCA30004FT2 SMA Coaxial Cable
L-com's Flexible SMA cable assembly is designed with 402SS Series coax, featuring a right angle SMA male connector on both ends. It is ideal for tight spaces, offering high durability with stainless-steel connectors and a heavy-duty boot. Operating up to 18 GHz, this 2.0 ft long FEP jacketed cable provides excellent shielding effectiveness greater than 110dB. Suitable for laboratory, general purpose, and automated test systems, it ensures reliable performance with low insertion loss and flexible routing capabilities for professional RF applications.
L-COM LCCA30004FT2 SMA Coaxial Cable Specifications:
- Frequency Range: DC 18 GHz
- VSWR: 1.41
- Velocity of Propagation: 70%
- RF Shielding: > 110dB
- Capacitance: 29.4 pF/ft
- Length: 2.0 ft
- Diameter: 0.315 in
- Weight: 0.15 lbs
- Impedance: 50 Ohms
- Inner Conductor: Stranded Copper, Silver-plated
- Dielectric: PTFE
- Shield Layers: Silver Plated Copper Tape and Braid
- Jacket Material: FEP, tan
- Jacket Diameter: 0.163 in
- Minimum Bend Radius: 1 in
- Connector Type: SMA Male Right Angle
- Operating Temperature: -55°C to +165°C
Buy the L-com Series SMA Coaxial Cable: LCCA30004FT2
Order the L-com SMA Coaxial Cable with 402SS Series coax, featuring right angle connectors, high shielding effectiveness over 110dB, and 18 GHz frequency capacity. This 2.0 ft flexible RF cable is perfect for tight spaces, automated test systems, and laboratory applications. Its durable stainless-steel connectors and heavy-duty boot ensure long-lasting performance. The cable’s PTFE dielectric and FEP jacket provide exceptional flexibility, low insertion loss, and excellent environmental stability. Improve your RF setup with this reliable, heavy-duty SMA cable today.
Buy L-com SMA Coaxial Cable with heavy-duty boot and 18 GHz performance now and experience unmatched reliability and high shielding effectiveness.
