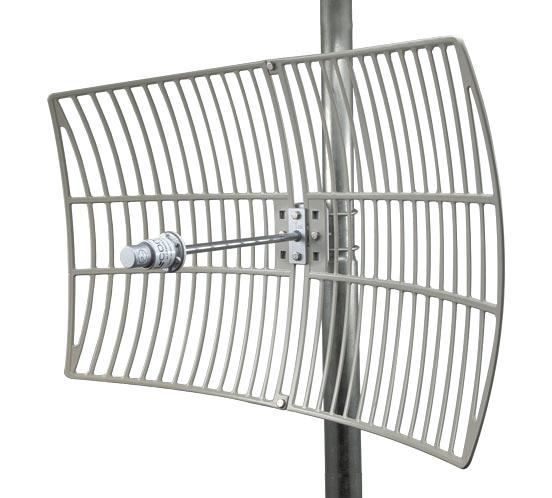

L-COM HG4927EG1NF Wireless Grid Antenna
The L-com HG4927EG-1-NF is a high-performance, lightweight reflector grid antenna designed for long-range point-to-point and multipoint applications in the 4.9 GHz to 5.8 GHz range. Made of die-cast aluminum with a UV-stable powder coat finish, it offers high gain of 27 dBi, excellent front-to-back ratio of 25 dB, and narrow beamwidths of 6° horizontal and 9° vertical. Equipped with N female connectors and easy mounting hardware, it supports 100 Watts power, operates within -40°C to +70°C, and withstands winds up to 124 MPH, ideal for WLAN backhaul and wireless bridge systems.
L-COM HG4927EG1NF Wireless Grid Antenna Specifications:
- Frequency Range: 4.9 GHz to 5.85 GHz
- Gain: 27 dBi
- Front to Back Ratio: 25 dB
- Horizontal HPBW: 6 Degrees
- Vertical HPBW: 9 Degrees
- Input Power: 100 Watts
- Impedance: 50 Ohms
- Size: Length 16.535 in, Width 24.803 in, Height 31 in
- Mounting Mast Diameter: 1.57 to 1.96 in
- Weight: 5.29 lbs (2.4 kg)
- Operating Temperature Range: -40°C to +70°C
- Wind Survivability: 124 MPH
- Humidity: 5 to 95%
- Connector: N Female
- Housing Material: Die-cast Aluminum with UV protected finish
- Mounting hardware included
- Designed for long-range directional wireless applications, supports 85-90 words specifications
Buy the INFINITG Series HG4927EG-1-NF: 4.9-5.8 GHz 27 dBi Lightweight Grid Antenna
Purchase the INFINITG Series HG4927EG-1-NF online today for reliable, long-range wireless connectivity. This lightweight, high-performance antenna with 27 dBi gain is ideal for WLAN backhaul, point-to-point, and multipoint systems. Made of durable die-cast aluminum, it offers easy mounting, advanced weather resistance, and supports up to 100 Watts power handling. Designed for harsh environments with extreme wind survivability up to 124 MPH and operating from -40°C to +70°C, it ensures robust and consistent wireless link performance across diverse applications.
Order your INFINITG Series HG4927EG-1-NF today and enhance your wireless networks with this high-gain, durable antenna built for long-range applications.
Frequently Asked Questions
Where can I buy L-COM HG4927EG1NF?
You can click on the BUY or RFQ button to purchase HG4927EG1NF from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part HG4927EG1NF?
You can download the HG4927EG1NF datasheet or visit the L-COM website for support.
Who is the manufacturer of HG4927EG1NF?
L-COM
