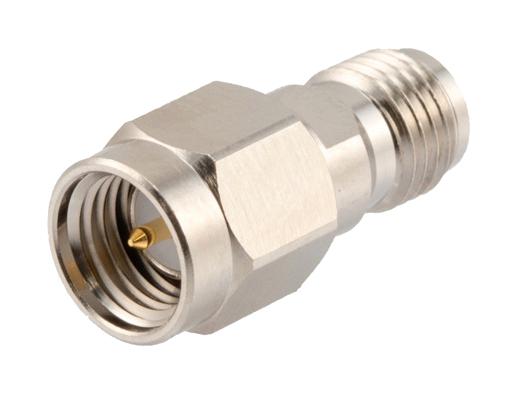

L-COM LCAD30031 RF Coaxial Adapter
These RF coaxial adapters connect SMA to reverse polarity SMA connectors, operating up to 18 GHz with a VSWR of 1.25:1. Made from brass with nickel plating, they feature gold-plated center contacts for reliable signal transfer. The straight adapter has a male SMA connector and a female reverse polarity SMA connector with a thread coupling mechanism defined by Mil-STD-348A. Designed for high-frequency applications, they withstand temperatures from -65°C to +165°C and are compatible with various RF interface configurations, ensuring durable and dependable connections in complex systems.
L-COM LCAD30031 RF Coaxial Adapter Specifications:
- Configuration: SMA Male to RP-SMA Female
- Impedance: 50 Ohm
- Frequency Range: Up to 18 GHz
- VSWR: 1.25:1
- Material: Brass with Nickel plating, Gold-plated Center Contacts
- Insulation: PTFE
- Outer Conductor: Brass Nickel
- Operating Temperature Range: -65°C to +165°C
- Size: Length 0.72 inches, Width 0.25 inches
- Mating Torque: 3 to 5 in-lbs
- Environmental Compliance: Temperature Range -65°C to +165°C
Buy the L-com Series RF Coaxial Adapter: SMA Male / RP-SMA Female LCAD30031
Purchase the L-com RF coaxial adapter online today for high-performance, durable connections up to 18 GHz. Featuring brass construction with nickel plating and gold-plated contacts, this SMA male to RP-SMA female adapter ensures stable RF communication in demanding environments. Its robust threaded coupling provides secure mating, while the wide operating temperature range of -65°C to +165°C makes it suitable for various industrial and communications applications. Convenient same-day shipping guarantees quick delivery for your RF system needs.
Buy L-com LCAD30031 RF coaxial adapter now and experience unmatched reliability and performance in high-frequency applications.
Frequently Asked Questions
Where can I buy L-COM LCAD30031?
You can click on the BUY or RFQ button to purchase LCAD30031 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCAD30031?
You can download the LCAD30031 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCAD30031?
L-COM
