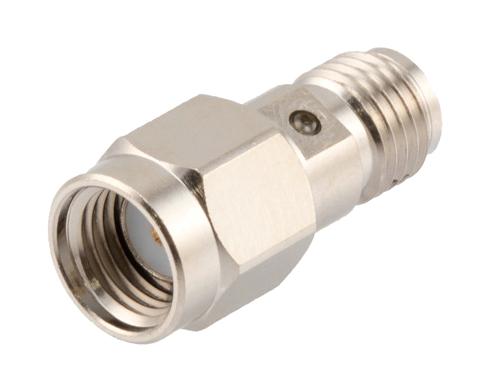

L-COM LCAD30030 SMA Coaxial Adapter
The RF coaxial adapter from L-com features an SMA female connector and a reverse polarity SMA male connector, operating up to 18 GHz with a VSWR of 1.25:1. Constructed from brass with a nickel finish, it offers reliable RF connections in application environments from -65°C to +165°C. The gold-plated center contact ensures low signal loss and durability, while the threaded coupling provides secure, interference-free connections. Perfect for high-frequency communication systems, antenna setups, and test equipment requiring dependable SMA to RP-SMA interface compatibility.
L-COM LCAD30030 SMA Coaxial Adapter Specifications:
- Frequency Range: up to 18 GHz
- VSWR: 1.25:1
- Insulation Resistance: 5,000 MOhms
- Length: 0.72 inches (18.29 mm)
- Width: 0.25 inches (6.35 mm)
- Material: Brass, nickel plating
- Connector Type: SMA female / RP-SMA male
- Center Contact: Gold-plated phosphor bronze
- Insulation Material: PTFE
- Operating Temperature: -65°C to +165°C
Buy the L-com Series SMA Coaxial Adapter: LCAD30030
Enhance your high-frequency RF system with the L-com SMA Coaxial Adapter LCAD30030, designed for reliable connections up to 18 GHz. Constructed from durable brass with nickel plating and featuring gold-plated contact pins, this adapter ensures minimal signal loss and exceptional performance. Its threaded coupling provides secure, interference-free connections suited for antenna, communication, and testing equipment. With an operating temperature range of -65°C to +165°C, it's ideal for demanding environments. Purchase this dependable RF adapter online today for fast shipping and trusted quality.
Get L-com SMA Coaxial Adapter LCAD30030 today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy L-COM LCAD30030?
You can click on the BUY or RFQ button to purchase LCAD30030 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCAD30030?
You can download the LCAD30030 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCAD30030?
L-COM
