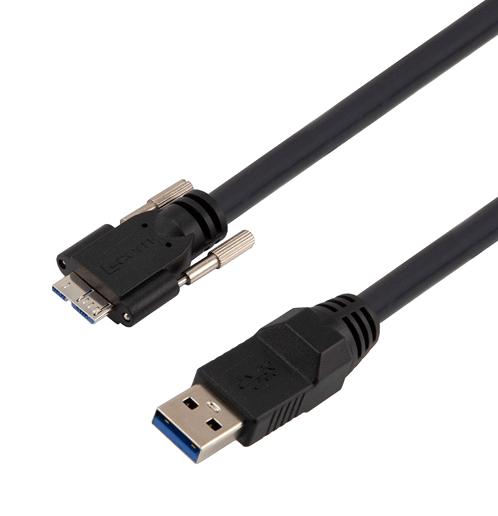

L-COM CAU3HFAMBVBLK1M High-Flex USB Cable
The CAU3HFAMBV family is designed for continuous motion and high-flex applications, suitable for factory automation and machine vision cameras. These rugged USB cables are tested for 5 million flex cycles in U-type drag chain environments, making them among the most durable options available. The high-flex, drag chain-rated cable assembly features male A-type connectors and Micro B-type connectors with thumbscrews to ensure secure locking in vision applications. Built with a PVC jacket rated for VW-1 flame resistance, the cable includes 22 AWG power conductors for maximum current capacity. The molded connectors enhance durability, and the cable's construction is optimized for video transfer use only.
L-COM CAU3HFAMBVBLK1M High-Flex USB Cable Specifications:
- UL Style 20276, USB 3.0 high-flex cable with twisted pairs
- Overall shielding includes aluminum/poly and braid
- Jacket: PVC, black, flame rating UL VW-1
- Minimum bend radius: 5X outer diameter fixed, 10X moving
- Connector types: USB 3.0 A/MIC B with molded strain relief
- Conductors: 28 AWG twisted pairs, 26 AWG unshielded twisted pair, 22 AWG unshielded twisted pair
- Shield: Spiral shield, drain wire, aluminum/poly, braid
- Outer diameter: .276 inches (7.0 mm)
- Length options: 0.5, 1.0, 1.5, 2.0, 3.0 meters
- Construction tested for 5 million flex cycles in drag chain environments
- Rated for high-flex industrial applications with secure locking features
- Maximum current capacity provided by 22 AWG power conductors
- Minimum fixed bend radius: 5X O.D., minimum moving bend radius: 10X O.D.
Buy the L-COM Series Industrial USB Cables High-Flex: CAU3HFAMBVBLK1M
Explore the L-COM high-flex USB cable designed for demanding industrial environments, featuring durable molded connectors, flame-resistant PVC jacket, and multiple length options. Built to endure over 5 million flex cycles in drag chain applications, this cable provides reliable video transfer and secure locking. Its high-quality construction with 28, 26, and 22 AWG conductors ensures maximum current capacity. Perfect for factory automation, robotics, and machine vision systems, this cable delivers exceptional flexibility, durability, and high-performance connectivity for your critical applications.
Get L-COM CAU3HFAMBV cable today—designed for durability and high-flex industrial automation environments.
Frequently Asked Questions
Where can I buy L-COM CAU3HFAMBVBLK1M?
You can click on the BUY or RFQ button to purchase CAU3HFAMBVBLK1M from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part CAU3HFAMBVBLK1M?
You can download the CAU3HFAMBVBLK1M datasheet or visit the L-COM website for support.
Who is the manufacturer of CAU3HFAMBVBLK1M?
L-COM
