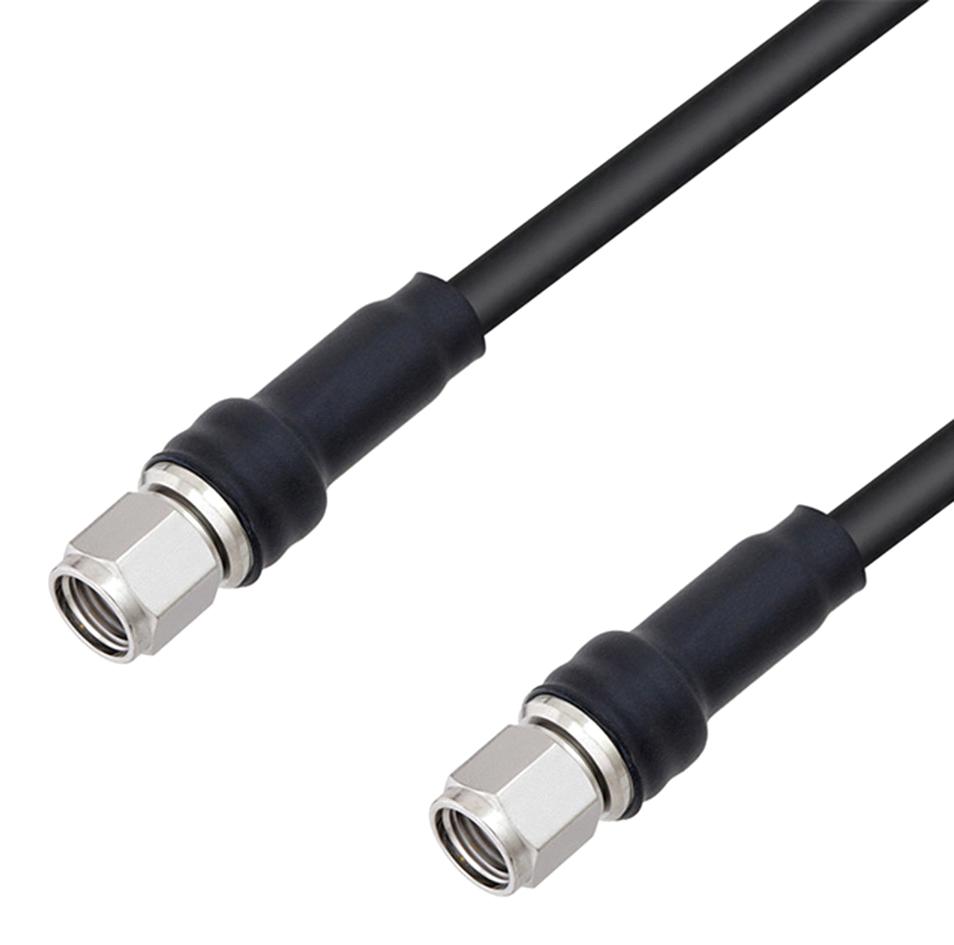

L-COM LCCA30156FT2 SMA Cable Assembly
The Low Loss SMA Male to SMA Male Cable Assembly employs LMR-195 coaxial cable, capable of operating up to 5.8 GHz with shield effectiveness over 90 dB. Its flexible design includes Times Microwave Components' connectors, making it ideal for radio, Wi-Fi, cellular, and antenna applications. This 2-foot cable features a PE dielectric, low insertion loss, and a bend radius of 2 inches. Suitable for lab use and communication systems, this assembly ensures reliable signal transmission with minimal loss and robust shielding.
L-COM LCCA30156FT2 SMA Cable Assembly Specifications:
- Frequency Range: 5.8 GHz
- Velocity of Propagation: 80%
- RF Shielding: 90 dB
- Group Delay: 1.27 ns/ft
- Capacitance: 25.4 pF/ft
- Inductance: 0.064 uH/ft
- DC Resistance Inner Conductor: 7.6 Ohms/1000ft
- DC Resistance Outer Conductor: 4.9 Ohms/1000ft
- Jacket Material: PE (F)
- Jacket Diameter: 0.195 in
- Cable Length: 2 ft
- Impedance: 50 Ohms
- Connector Type: SMA Male
- Body Material: Brass with Gold Plating
- Dielectric Type: Teflon
- Shield Layers: Aluminum Tape and Tinned Copper Braid
- Maximum Bend Radius: 2 Inches
- Temperature Range: -40°C to +85°C
- Weight: 0.11 lbs
Buy the INFINITG LCCA30156 U–2013 Reliable SMA Cable for Industrial Applications
Enhance your communication setups with the low loss SMA male to SMA male cable assembly. Using LMR-195 coax and Times Microwave components, this 2 ft flexible cable offers high shielding, low insertion loss, and operates up to 5.8 GHz. Its robust construction and excellent shielding efficiency ensure reliable signal transmission for cellular, Wi-Fi, antenna, and laboratory applications. Purchase this assembly online today to ensure quick delivery and superior performance in demanding communication environments.
Buy INFINITG LCCA30156 cable assembly now and experience unmatched reliability and performance for your radio, Wi-Fi, and communication systems.
Frequently Asked Questions
Where can I buy L-COM LCCA30156FT2?
You can click on the BUY or RFQ button to purchase LCCA30156FT2 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30156FT2?
You can download the LCCA30156FT2 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30156FT2?
L-COM
