L-COM LCAT100106 RF Attenuator

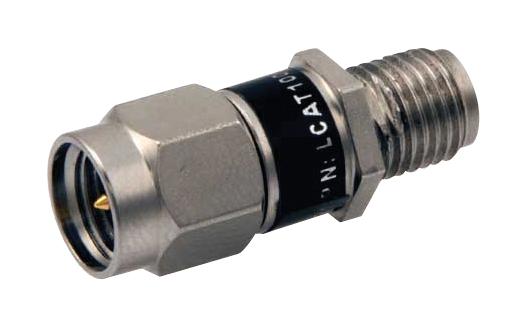

The L-com 2W/6dB Fixed Attenuator features SMA male to SMA female connectors with a stainless steel body, operating up to 3 GHz. Designed for RF applications, it provides a standard attenuation of 6 dB with high precision and reliability. Rated for 2 Watts continuous power, it is ideal for signal attenuation, impedance matching, and preventing overloads in instrumentation, production, and test systems. Its compact size and durable stainless steel construction make it suitable for demanding environments, ensuring consistent performance across a wide temperature range.
L-COM LCAT100106 RF Attenuator Specifications:
- Frequency Range: DC to 3 GHz
- Impedance: 50 Ohms
- Attenuation: 6 ±0.5 dB
- VSWR: < 1.1571
- Input Power, CW: 2 Watts
- Maximum Peak Power: 500 Watts (pulse with 0.4% duty cycle)
- Connector Type: SMA Male to SMA Female
- Contact Material: Brass, Gold Plated
- Outer Conductor Material: Stainless Steel
- Body Material and Plating: Stainless Steel
- Size: Length 0.8582 in (21.8 mm), Diameter 0.312 in (7.92 mm)
- Temperature Range Operating: -55°C to +125°C
Buy the INFINITG LCAT1001-06 – Reliable RF Attenuator for Industrial Applications
Enhance your RF test and measurement setups with the INFINITG RF Attenuator. Featuring SMA connectors, stainless steel body, and 6 dB attenuation up to 3 GHz, it's engineered to deliver reliable performance. Rated for 2 Watts continuous power and with excellent VSWR, this attenuator helps protect your equipment from signal overloads while maintaining impedance matching. Compact and durable, it is suitable for diverse applications including instrumentation, production, and prototyping, ensuring your projects achieve precision and consistency every time.
Order your INFINITG Series 2W/6dB RF Fixed Attenuator today and ensure your measurement systems operate with precision and dependability.
Frequently Asked Questions
Where can I buy L-COM LCAT100106?
You can click on the BUY or RFQ button to purchase LCAT100106 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCAT100106?
You can download the LCAT100106 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCAT100106?
L-COM
