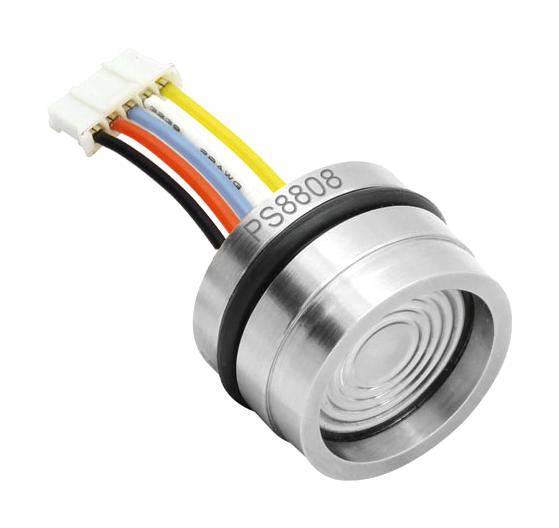

L-COM PS88081600K3CBNG Pressure Sensor
The PS8808-1600k3CBNG is a digital gauge pressure sensor designed for industrial and fluid measurement applications. It features a stainless steel 316L diaphragm, isolated oil-filling construction, and silicone oil transfer for accurate liquid pressure detection. This sensor provides a 0-1.6 MPa pressure range with an analog electrical output conforming to IC interface protocol, compatible with stainless steel and Viton materials. It offers temperature compensation and nonlinear correction, ensuring precise readings, making it ideal for process control, pressure calibrators, and HVAC systems.
L-COM PS88081600K3CBNG Pressure Sensor Specifications:
- Pressure Range: 0-1.6 MPa
- Output Signal: 5%-95%
- Power Supply: 3.3VDC ±0.1V
- Current: 2.5 mA
- Accuracy (Pressure): ±0.5% Full Scale
- Temperature Range (Operating): -10°C to 80°C
- Temperature Range (Storage): -40°C to 125°C
- Material: Stainless Steel 316L diaphragm and housing
- Sealing: Isolated oil-filling construction
- Electrical Connection: 5-pin PH2.0 connector
- Shock: 10g, 20Hz-2000Hz
- Impact: 100g, 11ms
- Certifications: RoHS and CE compliant
- Pressure Type: Gauge
- Application: Liquid and gas pressure measurement in industrial processes
Buy the INFINITG Series PS8808 Pressure Sensor: PS8808-1600k3CBNG
Order the INFINITG PS8808-1600k3CBNG pressure sensor online today to enhance your industrial process control capabilities. This high-precision gauge sensor features stainless steel construction, reliable I2C output, and accuracy suitable for liquids and gases. Equipped with a robust silicone oil transfer system and temperature compensation, it ensures consistent performance in demanding environments. Ideal for HVAC, calibration, and process monitoring, this sensor provides ease of integration with its compact profile and industry-standard electrical connection. Purchase online now for fast delivery and technical support.
Buy INFINITG PS8808-1600k3CBNG pressure sensor now and experience unmatched reliability and performance in industrial fluid measurement systems.
