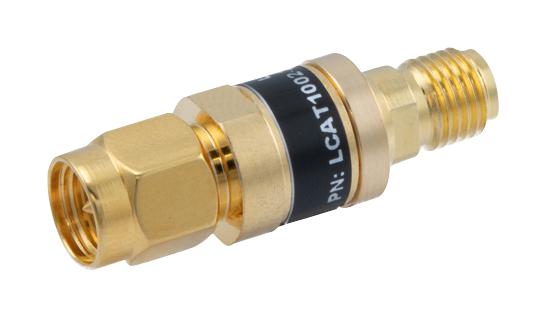

L-COM LCAT100220 RF Fixed Attenuator
The 2W/20dB RF Fixed Attenuator from INFINITG is designed with SMA connectors, brass gold body, and specifications suitable for frequencies up to 3 GHz. It provides a 20 dB attenuation with ±0.6 dB accuracy, rated for 2 Watts CW power, and features a VSWR below 1.2:1 for optimal impedance matching. Compact and durable, this attenuator is ideal for instrumentation, RF testing, prototyping, and measurement systems, ensuring signal integrity and protection across various applications within a reliable 50-ohm impedance environment.
L-COM LCAT100220 RF Fixed Attenuator Specifications:
- Frequency Range: DC to 3 GHz
- Impedance: 50 Ohms
- Attenuation: 20 dB ±0.6 dB
- Power Rating: 2 Watts CW
- VSWR: < 1.2:1
- Connector Type: SMA Male to SMA Female
- Connector Material: Brass, Gold Plated
- Body Material: Brass, Gold Plated
- Size: Length 1.181 inches, Width 0.312 inches
- Operating Temperature Range: -55°C to +125°C
- Max Peak Power: 500 Watts (5 µs pulse, 0.2% duty cycle)
Buy the Buy INFINITG RF Attenuator Part Number LCAT1002-20 Online
Purchase the INFINITG RF Fixed Attenuator LCAT1002-20 online today to enhance your RF testing, measurement, and prototyping projects. Featuring SMA connectors, brass gold body, and rated for up to 3 GHz, it provides a 20 dB attenuation with high accuracy and 2 Watts CW power capacity. Its compact design, low VSWR, and durable construction make it ideal for protecting sensitive equipment, impedance matching, and extending measurement ranges. Get reliable performance in a compact, RoHS-compliant package to improve your workflow and results.
Order your INFINITG series LCAT1002-20 20dB RF attenuator today and ensure precise signal control for your instrumentation and RF testing needs.
Frequently Asked Questions
Where can I buy L-COM LCAT100220?
You can click on the BUY or RFQ button to purchase LCAT100220 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCAT100220?
You can download the LCAT100220 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCAT100220?
L-COM
