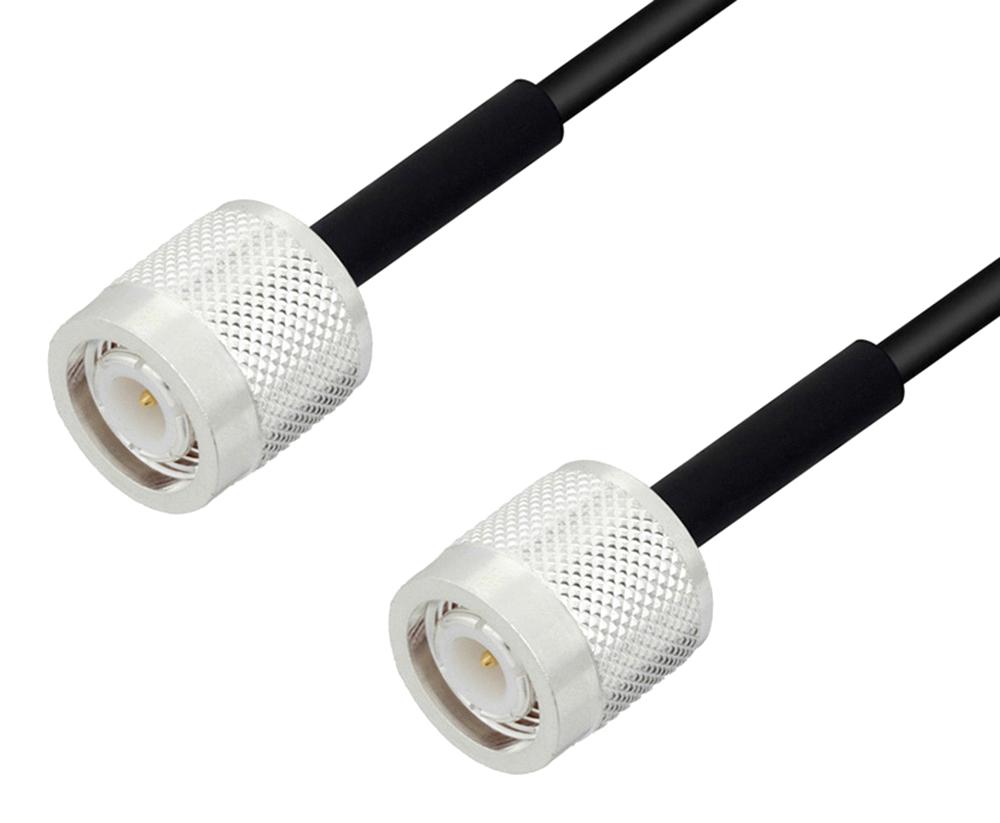

L-COM LCCA30152FT15 TNC Male Cable Assembly
L-com’s LCCA30152-FT1.5 is a low-loss TNC male to TNC male cable assembly utilizing LMR-100 coaxial cable with a 1.5 FT length and Times Microwave components. This flexible RF cable operates up to 5.8 GHz, featuring a PE dielectric with 66% VoP, ensuring very low insertion loss. Its double shielding—tinned copper braid over aluminum tape—provides over 90 dB shielding effectiveness. Ideal for radio, Wi-Fi, cellular, and antenna applications, this assembly offers excellent durability, bend radius of 1 inch, and high-performance electrical characteristics for reliable connectivity.
L-COM LCCA30152FT15 TNC Male Cable Assembly Specifications:
- Frequency Range: DC to 5.8 GHz
- Velocity of Propagation: 66 %
- Insertion Loss (Typ.): 0.37 dB at 0.25 GHz, 0.56 dB at 5.8 GHz
- Shielding Effectiveness: > 90 dB
- Cable Length: 1.5 ft
- Diameter: 0.6 in (15.24 mm)
- Impedance: 50 Ohms
- Inner Conductor: Solid Copper Clad Steel, Gold Plated
- Dielectric: PE (Polyethylene)
- Connectors: TNC Male
- Operating Temperature Range: -40°C to +85°C
- Minimum Bend Radius: 1 in, 25.4 mm
- Weight: 0.198 lbs (89.81 g)
Buy the Buy INFINITG TNC Male to TNC Male Cable Part Number LCCA30152-FT1.5 Online
Purchase the INFINITG TNC male to TNC male cable assembly, 1.5 ft long, engineered for high-frequency RF applications up to 5.8 GHz. With superior shielding effectiveness greater than 90 dB, low insertion loss, and durable PE dielectric, this cable is ideal for radio, cellular, Wi-Fi, and antenna installations. Its flexible design and compact bend radius make it suitable for demanding environments. Order online today for quick shipment and high-quality connectivity solutions, ensuring your projects benefit from dependable performance and professional-grade components.
Order your INFINITG SeriesLCCA30152-FT1.5 low-loss TNC cable today and ensure reliable, high-frequency connectivity for your communication systems.
Frequently Asked Questions
Where can I buy L-COM LCCA30152FT15?
You can click on the BUY or RFQ button to purchase LCCA30152FT15 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30152FT15?
You can download the LCCA30152FT15 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30152FT15?
L-COM
