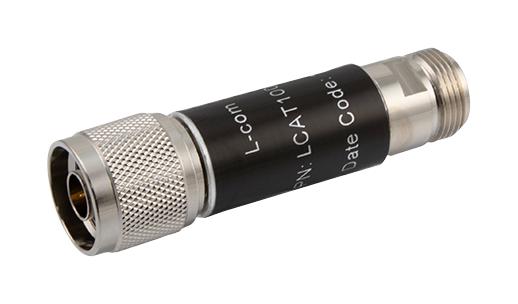

L-COM LCAT100409 RF Fixed Attenuator
The 2W/9dB RF Fixed Attenuator features N-type male to N-type female connectors and is designed for RF signal attenuation up to 6 GHz. Crafted with brass and nickel plating, it offers a nominal attenuation of 9 dB with high accuracy and a VSWR below 1.3:1. Rated for 2 Watts continuous wave power, it is ideal for applications such as instrumentation, RF testing, and production systems. Its robust construction ensures reliable performance in demanding environments, making it suitable for precise RF measurements and signal management in various electronic and communication systems.
L-COM LCAT100409 RF Fixed Attenuator Specifications:
- Frequency Range: DC to 6 GHz
- Impedance: 50 Ohms
- Nominal Attenuation: 9 dB
- Attenuation Accuracy: ±0.5 dB
- VSWR: < 1.3:1
- Input Power CW: 2 Watts
- Peak Power Input: 500 Watts (pulse with 0.5% duty cycle)
- Insertion Loss: Approximately 1.5 dB
- Connectors: N Male to N Female
- Connector Contact Material: Brass, Gold plated
- Outer Conductor Material: Brass, Nickel plated
- Body Material: Brass, Nickel plated
- Size: Length 70 mm, Diameter 20 mm
- Weight: 70 g
- Operating Temperature Range: -55°C to +125°C
- Body Material: Brass with Nickel plating
Buy the INFINITG 2W/9dB RF Fixed Attenuator – Reliable RF Signal Attenuation for Industrial Applications
Enhance your RF systems with the INFINITG RF Fixed Attenuator, featuring N-type connectors, 9 dB attenuation, and a durable brass nickel finish. Operating up to 6 GHz with 2 Watts CW power rating, it ensures precise signal reduction for instrumentation, RF testing, and production applications. Its compact design and reliable construction make it ideal for various electronic systems requiring impedance matching, power protection, and signal level management. Purchase online today for fast delivery and consistent, high-quality RF performance.
Buy INFINITG 2W/9dB RF Fixed Attenuator now and experience unmatched reliability and signal attenuation performance in RF testing and instrumentation.
Frequently Asked Questions
Where can I buy L-COM LCAT100409?
You can click on the BUY or RFQ button to purchase LCAT100409 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCAT100409?
You can download the LCAT100409 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCAT100409?
L-COM
