L-COM TRD795ZBLK05M Category 7 Ethernet Cable

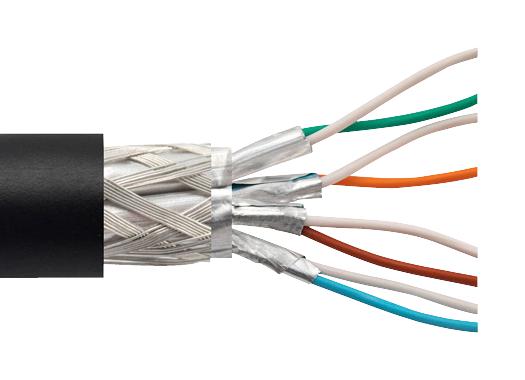

L-com's double-shielded Category 7 Ethernet cable features an overall braid shield around individually shielded twisted pairs, ensuring high performance in electrically noisy environments. This 0.5-meter black cable is constructed with 26 AWG stranded conductors, an LSZH (Low Smoke Zero Halogen) jacket, and is rated for 30V operation within a temperature range of -10°C to +80°C. It is compliant with IEC standards 60332-1, 60754, and 61034, making it suitable for high-speed data applications, including up to 10 gigabit Ethernet. The cable is equipped with RJ45 male plugs wired to TIA standards, ideal for networking and communication in data centers and networking environments.
L-COM TRD795ZBLK05M Category 7 Ethernet Cable Specifications:
- Conductors: 26 AWG stranded copper
- Shielding: Aluminum/polyester foil for twisted pairs, overall tin-plated copper braid
- Jacket: Low Smoke Zero Halogen (LSZH), black color
- Length: 0.5 meters (1.64 feet)
- Voltage Rating: 30V
- Operating Temperature: -10°C to +80°C
- Flame Rating: IEC 60332-1
- Standards: IEC 61034, IEC 60754
- Connectors: RJ45 male plugs, wired to TIA-568-B.2-1 specifications
- Application: High-speed Ethernet up to 10Gbps, data center networking
- Cable Type: Category 7 shielded twisted pair
- Outer Diameter: approximately 6.0mm
- Conformity: TIA-568-C.2, UL listed
Buy the L-com Series Category 7 Ethernet: TRD795ZBLK05M
Purchase L-com Category 7 Ethernet cable today for optimal network performance. With dual shielding, 26 AWG conductors, and a durable LSZH jacket, this cable ensures reliable connectivity in high-noise environments. Rated for 30V and operating from -10°C to +80°C, it’s suitable for data centers and high-speed Ethernet installations. Wired to TIA standards with RJ45 connectors, this shielded twisted pair cable supports up to 10 gigabit Ethernet speeds, making it an ideal choice for professional networking, industrial applications, and enterprise data transfer needs.
Get L-com TRD795ZBLK05M today—built for high-speed data transmission and reliable network connectivity.
Frequently Asked Questions
Where can I buy L-COM TRD795ZBLK05M?
You can click on the BUY or RFQ button to purchase TRD795ZBLK05M from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TRD795ZBLK05M?
You can download the TRD795ZBLK05M datasheet or visit the L-COM website for support.
Who is the manufacturer of TRD795ZBLK05M?
L-COM
