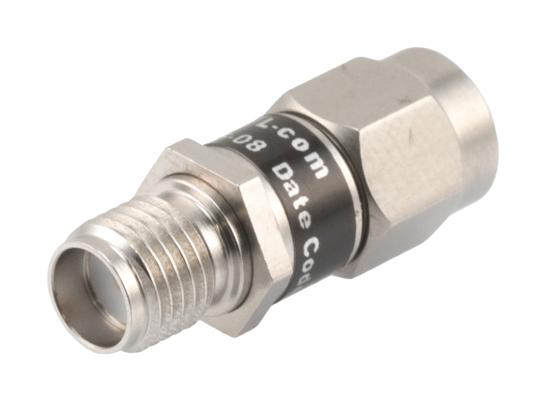

L-COM LCAT100508 RF Attenuator
The L-com fixed attenuator rated at 8 dB provides precise signal attenuation for high-frequency RF applications up to 18 GHz. Its stainless steel body ensures durability and resistance to environmental factors, making it suitable for instrumentation, prototyping, and precision measurements. With a maximum input power of 2W and an attenuation accuracy of ±0.5 dB, it maintains excellent VSWR of less than 1.30:1. Connected via SMA male to SMA female connectors, this compact component offers reliable performance for test systems and signal conditioning in demanding environments.
L-COM LCAT100508 RF Attenuator Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- Nominal Attenuation: 8 dB
- Attenuation Accuracy: ±0.5 dB
- VSWR: <1.30:1
- Input Power (CW): 2 Watts, Peak Power: 500 Watts (derated linearly to 0.5W at 125°C)
- Connector Type: SMA Male to SMA Female
- Body Material: Stainless Steel
- Operating Temperature: -55°C to +125°C
- Size: Length 0.85 in, Diameter 0.312 in
- Weight: 0.0088 lbs
Buy the INFINITG LCAT1005-08 – Reliable RF Attenuator for Industrial Applications
Purchase the INFINITG RF Attenuator today for high-frequency signal management up to 18 GHz. Featuring stainless steel construction and SMA connectors, this 8 dB fixed attenuator ensures reliable performance in instrumentation, testing, and RF applications. With a maximum input power of 2W and exceptional attenuation accuracy, it is ideal for protecting measurement equipment and achieving precise impedance matching. Order online now to ensure your RF testing and prototyping projects are equipped with durable, high-quality components that deliver consistent results at an excellent value.
Get INFINITG LCAT1005-08 today—built for precision and long-lasting durability in high-frequency RF measurement systems.
Frequently Asked Questions
Where can I buy L-COM LCAT100508?
You can click on the BUY or RFQ button to purchase LCAT100508 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCAT100508?
You can download the LCAT100508 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCAT100508?
L-COM
