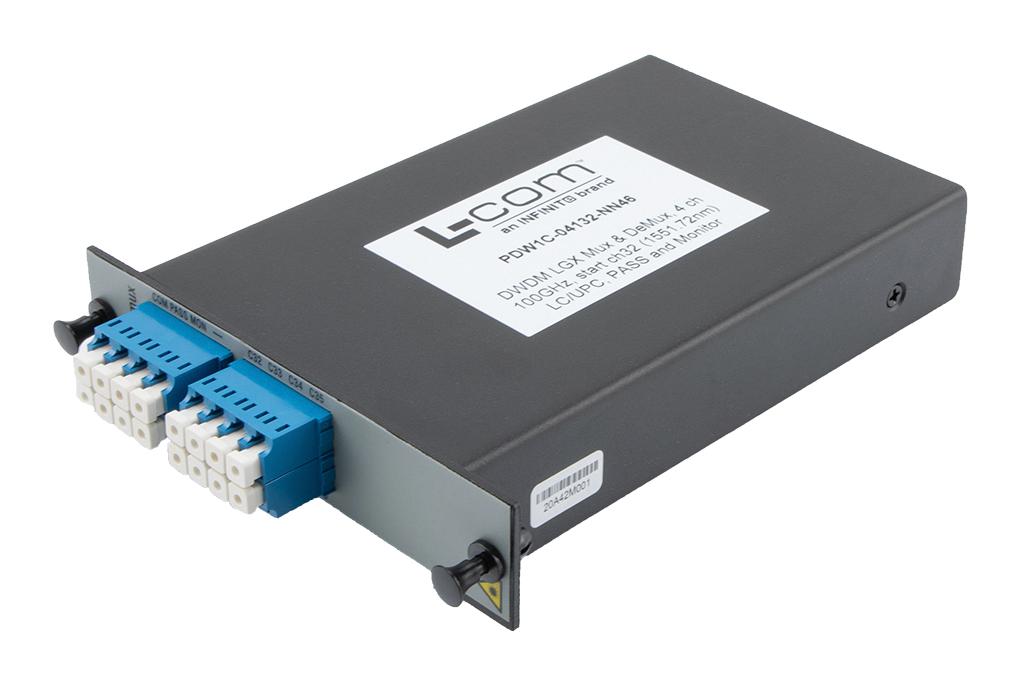

L-COM PDW1C04132NN46 DWDM Filter Module
This is a standard LGX filter module with combined mux and demux functionality, equipped with four DWDM channels. It features LC/UPC connectors and offers a monitor port option on both the mux and demux units. The module includes an express channel that passes all DWDM channels not present on the filter, enabling easy upgradeability. It is a dual-fiber filter with one port for transmitting a multiplexed signal and another for receiving a composite signal for demultiplexing. The channels start at 1551.72nm (channel 32) with 100GHz spacing. The filter is suitable for single-mode fiber networking, dual-fiber setups, and metro transport applications. Designed for side-by-side mux and demux functions, it is intended for inside plant (ISP) operations, housed in an LGX cassette with LC/UPC connectors and a 1% monitor port option.
L-COM PDW1C04132NN46 DWDM Filter Module Specifications:
- Connector Type: LC/UPC
- Number of Channels: 4
- Module Function: Mux/DeMux
- Filter Type: DWDM
- Operating Wavelength: 1527.22 to 1564.68 nm
- Pass Port Wavelength: 1527.22 to 1564.68 nm
- Pass Port Insertion Loss: 2 dB
- Pass Port Isolation: 12 dB
- Pass Band: 0.68 to 0.93 nm
- Pass Band Ripple: 0.5 dB
- Center Wavelength (Channel): 1549.32 to 1551.72 nm
- Channel Spacing: 0.83 nm
- Channel Insertion Loss: 25 dB
- Return Loss: 45 dB
- Directivity: 50 dB
- PDL: 0.25 dB
- PMD: 0.2 Ps
- Power Handling: 300 mW
- Adjacent Channel Isolation: 28 dB
- Non-Adjacent Channel Isolation: 40 dB
- Channel to Monitor Port IL: 25 dB
- COM to Monitor Port IL: 23 dB
- IL Thermal Stability: 0.005 dB/°C
- Wavelength Thermal Stability: 0.002 nm/°C
- Operating Temperature Range: -20°C to +65°C
- Storage Temperature Range: -40°C to +85°C
- Humidity: 5-95% RH
Buy the INFINITG Series DWDM Filter: PDW1C04132NN46
Secure your fiber optic network with the INFINITG DWDM filter module PDW1C04132NN46. Featuring four channels with 100GHz spacing and LC/UPC connectors, it provides reliable multiplexing for metro and inside plant applications. Its dual-fiber design ensures efficient data transmission and demultiplexing, making it ideal for high-capacity single-mode fiber networks. Enjoy same-day shipping, expert support, and easy upgradeability with this robust passive DWDM solution designed for critical communication infrastructure.
Buy INFINITG series DWDM filter PDW1C04132NN46 now and experience unmatched reliability and performance with high-quality passive multiplexing suitable for demanding fiber networks.
