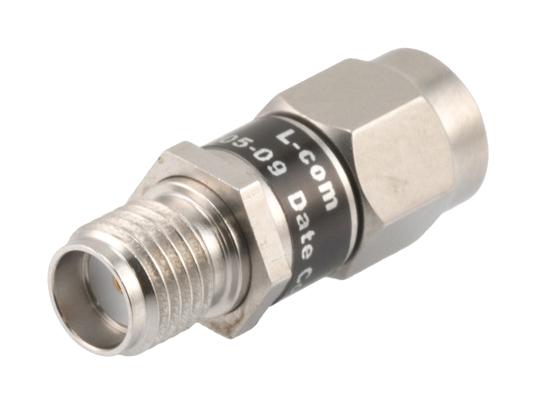

L-COM LCAT100509 RF Fixed Attenuator
The 2W/9 dB Fixed Attenuator with SMA male to SMA female connectors features a stainless steel body, operates up to 18 GHz, and provides a 9 dB attenuation with high accuracy. Rated at 2 Watts, it is ideal for signal level reduction, impedance matching, and protecting measurement equipment in RF applications. Its compact size, durable construction, and wide temperature range from -55°C to 125°C make it suitable for instrumentation, prototyping, and RF testing systems. This versatile, RoHS-compliant attenuator ensures reliable performance in demanding environments.
L-COM LCAT100509 RF Fixed Attenuator Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- Nominal Attenuation: 9 dB
- Attenuation Accuracy: ±0.5 dB
- VSWR: <1.30:1
- Input Power Peak: 500 Watts
- Input Power CW: 2 Watts
- Size: Length 0.85 in (21.59 mm), Width 0.312 in (7.92 mm)
- Body Material: Stainless Steel
- Connector Type: SMA Male to SMA Female
- Connector Contact Material: Brass, Gold plated
- Operating Temperature Range: -55°C to +125°C
- Weight: 0.0088 lbs (3.99 g)
Buy the INFINITG 2W/9 dB Fixed Attenuator – Reliable RF Attenuation for Industrial Applications
Enhance your RF measurement and protection systems with the INFINITG Fixed Attenuator featuring SMA connectors, 9 dB attenuation, and stainless steel construction. Operating up to 18 GHz and rated at 2 Watts, it offers high accuracy, durability, and excellent performance for instrumentation, testing, and prototyping. Its compact size ensures easy integration into your RF setups, while the wide temperature range makes it suitable for demanding environments. Purchase online today to secure reliable RF attenuation for your industrial, laboratory, or production applications.
Buy INFINITG 2W/9 dB Fixed Attenuator now and experience unmatched reliability and performance in RF signal management.
Frequently Asked Questions
Where can I buy L-COM LCAT100509?
You can click on the BUY or RFQ button to purchase LCAT100509 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCAT100509?
You can download the LCAT100509 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCAT100509?
L-COM
