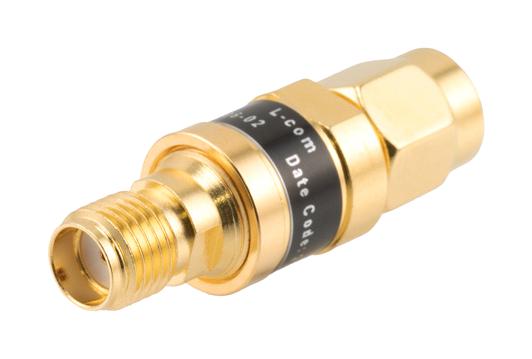

L-COM LCAT100602 RF Attenuator
The LCAT1006-02 is a 2W/2 dB fixed RF attenuator with SMA male to SMA female connectors, suitable for applications up to 18 GHz. It features a brass gold-plated body, operates from -55°C to +125°C, and has an impedance of 50 ohms. Designed to reduce signal levels for protection, measurement accuracy, and impedance matching, it is ideal for instrumentation, prototyping, and RF testing. Measuring 1.18 inches in length and 0.393 inches in diameter, it supports peak input power up to 500W (derated to 0.5W at 125°C).
L-COM LCAT100602 RF Attenuator Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- Attenuation: 2 dB
- Attenuation Accuracy: ±1 dB
- VSWR: 1.36:1
- Input Power, CW: 2 Watts
- Peak Input Power: 500W (0.5kW) with 5us pulse and 0.4% duty cycle
- Size: Length 1.18 inches, Diameter 0.393 inches
- Weight: 0.022 lbs (9.98 g)
- Body Material: Brass, Gold Plated
- Operating Temperature: -55°C to +125°C
- Connectors: SMA Male to SMA Female
- Coupling Nut Material: Brass, Gold Plated
- Hex Size: 5/16 inch
Buy the INFINITG LCAT1006-02 – Reliable RF Attenuator for Industrial Applications
Enhance your RF measurement setup with the INFINITG LCAT1006-02 fixed attenuator. This precision component provides 2 dB attenuation, supports up to 18 GHz frequency, and features SMA connectors for easy integration. Its brass gold-plated body ensures durability and excellent signal integrity. Suitable for instrumentation, prototyping, and RF testing, it handles peak power up to 500W in pulses, with a continuous power rating of 2W. Compact and reliable, it is a vital tool for accurate, protected, and impedance-matched RF systems.
Buy INFINITG LCAT1006-02 now and experience unmatched reliability and performance in RF signal attenuation up to 18 GHz.
Frequently Asked Questions
Where can I buy L-COM LCAT100602?
You can click on the BUY or RFQ button to purchase LCAT100602 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCAT100602?
You can download the LCAT100602 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCAT100602?
L-COM
