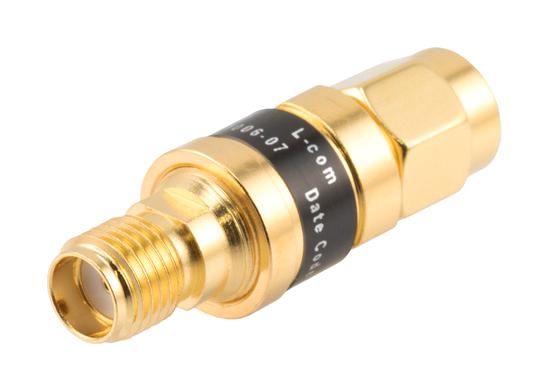

L-COM LCAT100607 RF Attenuator
The L-com 2W/7 GB Fixed Attenuator is a high-performance RF component designed for precise signal attenuation up to 18 GHz. Featuring a brass and gold-plated body with SMA male to SMA female connectors, it offers excellent durability and corrosion resistance. Rated to handle 2 Watts CW power, it maintains a VSWR of less than 1.36:1 for accurate impedance matching. Suitable for instrumentation, prototyping, and RF measurement systems, this fixed attenuator ensures reliable performance in demanding environments from -55°C to +125°C, making it essential for RF testing and signal conditioning.
L-COM LCAT100607 RF Attenuator Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- Nominal Attenuation: 7 dB
- Attenuation Accuracy: ±1 dB
- VSWR: <1.36:1
- Input Power, CW: 2 Watts maximum
- Input Power, Peak: 500 Watts (0.5 kW) 5 us pulse, 0.4% duty cycle
- Operating Temperature Range: -55°C to +125°C
- Connector Type: SMA Male to SMA Female
- Body Material: Brass with Gold Plating
- Size: Length 1.18 in (29.97 mm), Diameter 0.393 in (9.98 mm)
- Weight: 0.022 lbs (9.98 g)
Buy the INFINITG Series RF Attenuator: 7 dB SMA Male to SMA Female 2W up to 18 GHz
Purchase the INFINITG RF Attenuator online today and experience unmatched reliability in signal conditioning. Designed for high-frequency applications up to 18 GHz, it features a durable brass and gold-plated body with SMA connectors. Rated for 2 Watts CW power, it provides precise 7 dB attenuation with an accuracy of ±1 dB. Its compact size and robust construction make it ideal for instrumentation, testing, and RF systems in demanding environments, ensuring optimal performance and long-term durability.
Get INFINITG 7 dB Fixed Attenuator today—built for precision, durability, and high-frequency RF applications.
