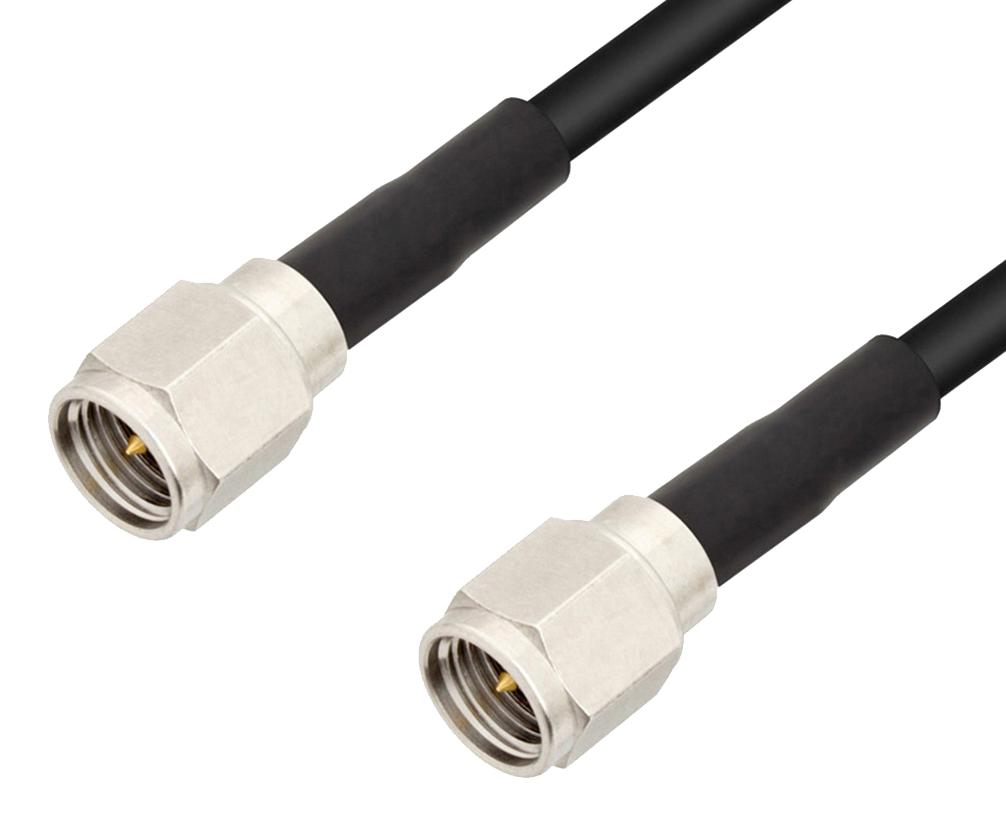

L-COM LCCA30151FT2 Low Loss SMA Cable
L-com’s LCCA30151-FT2 is a 2-foot low loss SMA male to SMA male coaxial cable assembly using LMR-100A-PVC coax, ideal for RF and communication applications up to 5.8 GHz. Featuring double shielding with tinned copper braid over aluminum tape, it provides shielding effectiveness greater than 90 dB, minimal insertion loss, and excellent flexibility for installations requiring frequent bending. Constructed with Teflon dielectric, gold-plated contacts, and stainless steel connectors, this cable ensures reliable connections across land mobile radio, Wi-Fi, cellular, and antenna systems, with same-day shipment from stock.
L-COM LCCA30151FT2 Low Loss SMA Cable Specifications:
- Frequency Range: DC to 5.8 GHz
- Velocity of Propagation: 66%
- Shielding Effectiveness: >90 dB
- Insertion Loss: 0.43 dB at 0.25 GHz, 0.68 dB at 5.8 GHz
- Impedance: 50 Ohms
- Jacket Material: PVC, Black
- Jacket Diameter: 0.11 in (2.79 mm)
- Cable Type: LMR-100A-PVC
- Connector Type: SMA Male to SMA Male
- Cable Length: 2 ft (609.6 mm)
- Inner Conductor Material: Copper Clad Steel
- Dielectric Type: Teflon
- Shield Layers: Aluminum Tape and Tinned Copper Braid
- Temperature Range: -40°C to +85°C
- Weight: 0.044 lbs (19.96 g)
- Bend Radius: 0.25 in (6.35 mm)
- Color: Black
- Certification: Not specified but compliant for RF application standards.
Buy the Buy GLOBAL CONNECTIVITY SOLUTIONS Low Loss SMA Male to SMA Male Cable Assembly Part Number LCCA30151FT2 Online
Order the low loss SMA male to SMA male 2-foot coaxial cable assembly from GLOBAL CONNECTIVITY SOLUTIONS today. Featuring LMR-100A-PVC coax, shielding >90dB, and operating up to 5.8 GHz, this flexible cable ensures high performance for RF, Wi-Fi, cellular, and antenna applications. Guaranteed same-day shipping, durable construction with gold-plated contacts, and Teflon dielectric make it an ideal choice for professional installations and laboratory testing, delivering excellent signal integrity and minimal loss for demanding communication systems.
Buy GLOBAL CONNECTIVITY SOLUTIONS LCCA30151-FT2 now and experience unmatched reliability and performance in RF and communication systems.
