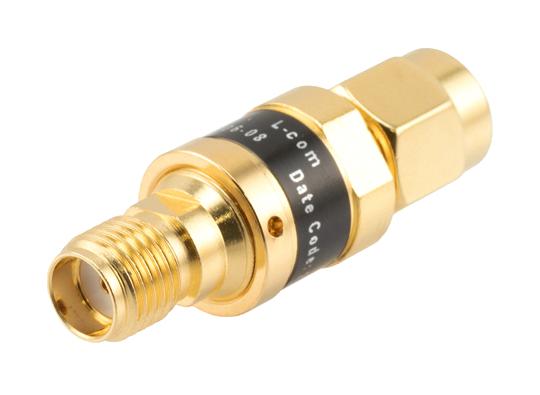

L-COM LCAT100608 RF Fixed Attenuator
The L-com fixed attenuator rated at 8 dB attenuation operates from DC to 18 GHz with 50 ohm impedance. It uses SMA male to SMA female brass and gold connectors, designed for precise signal attenuation in instrumentation, prototyping, and measurement systems. Rated at 2W continuous power and up to 500W peak, it features a compact size of 1.18 inches length and 0.393 inches diameter. The brass body with gold plating ensures durability, high performance, and low VSWR, making it ideal for RF applications requiring accurate control of signal levels.
L-COM LCAT100608 RF Fixed Attenuator Specifications:
- Frequency range from DC to 18 GHz
- Impedance: 50 Ohms
- Nominal Attenuation: 8 dB
- Attenuation accuracy: ±1 dB
- VSWR: 1.36:1
- Input Power (CW): 2 Watts, Peak: 500 Watts
- Size: Length 1.18 inches, Diameter 0.393 inches
- Body Material: Brass with Gold plating
- Connectors: SMA Male to SMA Female
- Operating temperature: -55°C to +125°C
- Weight: 0.022 lbs (9.98 g)
- Design: Fixed, connectorized module
Buy the INFINITG Series RF Attenuator: LCAT1006-08
Order the INFINITG fixed attenuator LCAT1006-08 online to ensure accurate RF signal control up to 18 GHz in your instrumentation, testing, or communication systems. Designed with brass and gold plating for durability and optimal performance, this 8 dB attenuation device is rated for 2W continuous power and features SMA connectors for easy integration. Its compact size and high power handling make it ideal for professional testing and prototyping environments, delivering reliable attenuation and impedance matching. Buy now for fast shipping and high-quality RF solutions.
Get INFINITG LCAT1006-08 today—built for precision RF signal attenuation up to 18 GHz with durable brass and gold construction.
Frequently Asked Questions
Where can I buy L-COM LCAT100608?
You can click on the BUY or RFQ button to purchase LCAT100608 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCAT100608?
You can download the LCAT100608 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCAT100608?
L-COM
