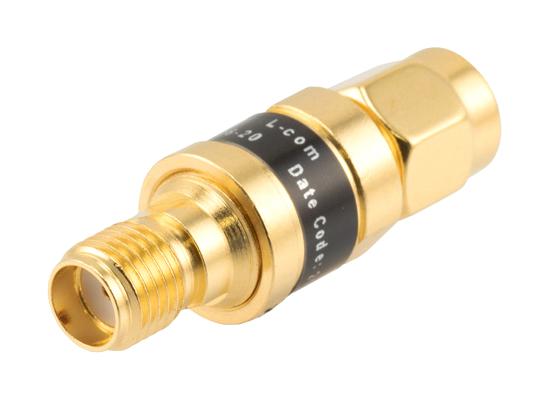

L-COM LCAT100620 RF Fixed Attenuator
This high-quality fixed attenuator from Infinite Electronics reduces signal levels by 20 dB across a frequency range up to 18 GHz, making it ideal for instrumentation and precision measurement applications. Crafted with brass and gold plating, it features a compact SMA male to SMA female connector design, capable of handling peak power up to 500 Watts and continuous power of 2 Watts. The durable construction ensures reliable performance in harsh environments, with an operating temperature range from -55°C to +125°C, ensuring suitability for diverse RF testing and prototyping needs.
L-COM LCAT100620 RF Fixed Attenuator Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- Nominal Attenuation: 20 dB
- Attenuation Accuracy: ±1.4 dB
- VSWR: 1.36:1
- Peak Input Power: 500 Watts (0.5 kW, 5 us pulse, 0.4% duty cycle)
- Continuous Power: 2 Watts
- Operating Temperature Range: -55°C to +125°C
- Connector Type: SMA Male to SMA Female
- Body Material and Plating: Brass, Gold
- Size: Length 1.18 in (29.97 mm), Diameter 0.393 in (9.98 mm)
- Weight: 0.022 lbs (9.98 g)
Buy the Buy INFINITG 2W/20 dB Fixed Attenuator Part Number LCAT1006-20 Online
Enhance your RF testing and measurement projects with the INFINITG 20 dB RF Fixed Attenuator, featuring SMA connectors, brass and gold construction, and up to 18 GHz frequency range. Designed for reliability and durability, it handles peak power up to 500 Watts and offers an attenuation accuracy of ±1.4 dB. Its compact size and rugged build make it suitable for instrumentation, prototyping, and production systems. Easily order online today and optimize your RF setups with this high-performance, precision component crafted for demanding environments.
Order your INFINITG Series LCAT1006-20 20 dB RF Attenuator today and ensure precise signal management for your RF applications.
Frequently Asked Questions
Where can I buy L-COM LCAT100620?
You can click on the BUY or RFQ button to purchase LCAT100620 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCAT100620?
You can download the LCAT100620 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCAT100620?
L-COM
