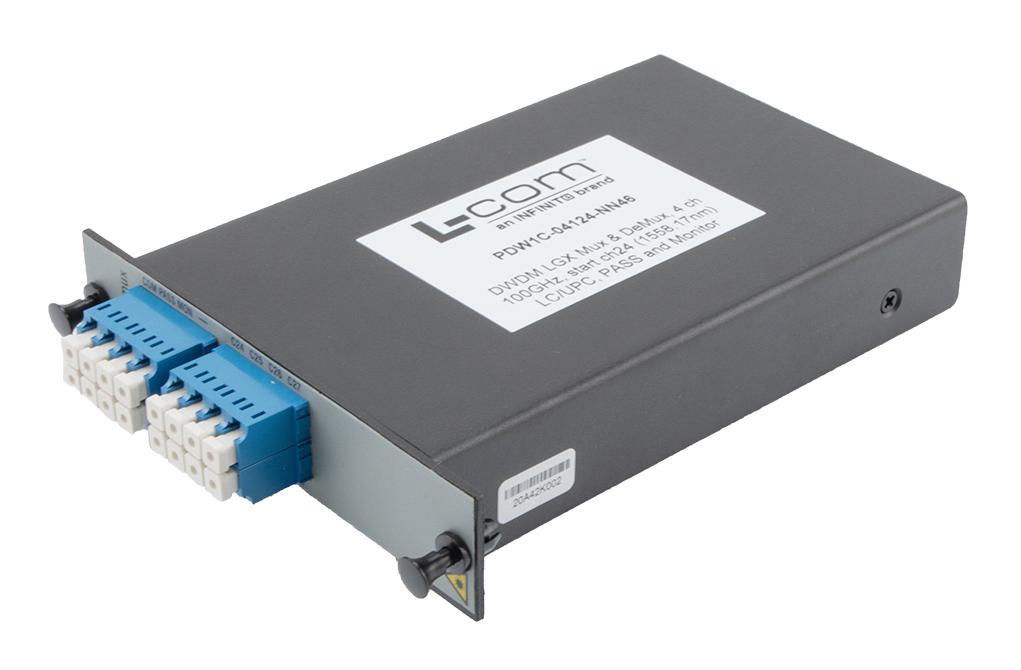

L-COM PDW1C04124NN46 DWDM Filter Module
This is a standard LGX filter module featuring combined multiplexing and demultiplexing functionalities with four DWDM channels. It is equipped with LC/UPC connectors and includes an optional monitor port on both the mux and demux units, facilitating performance monitoring. The module supports an express channel to pass through DWDM channels not present on the filter, enabling easy upgrades. It functions as a dual-fiber device, with one fiber transmitting a multiplexed signal and the other receiving a composite demultiplexed signal. Operating on channel 24 at 1558.98 nm with 100 GHz spacing, it is designed for single-mode fiber networks, suitable for metro transport applications, inside plant (ISP) operations, and side-by-side mux and demux configurations. The module is an LGX cassette compatible with standard fiber infrastructures.
L-COM PDW1C04124NN46 DWDM Filter Module Specifications:
- Operating Wavelength: 1527.22 to 1564.68 nm
- Pass Port Wavelength: 1527.22 to 1564.68 nm
- Pass Port Insertion Loss: 2 dB
- Pass Port Isolation: 12 dB
- Pass Band: 0.68 to 0.93 nm
- Pass Band Ripple: 0.5 dB
- Center Wavelength (Channel): 1555.75 to 1558.17 nm
- Channel Spacing: 0.83 nm
- Channel Insertion Loss: 25 dB
- Return Loss: 45 dB
- Directivity: 50 dB
- PDL: 0.25 dB
- PMD: 0.2 Ps
- Power Handling: 300 mW
- Adjacent Channel Isolation: 28 dB
- Non-Adjacent Channel Isolation: 40 dB
- Channel to Monitor Port IL: 25 dB
- COM to Monitor Port IL: 23 dB
- Thermal Stability IL: 0.005 dB/°C
- Wavelength Thermal Stability: 0.002 nm/°C
- Operating Temperature Range: -20 to +65°C
- Storage Temperature Range: -40 to +85°C
- Humidity: 5-95% RH
Buy the L-com PDW1C04124NN46 – Reliable DWDM Filter for Industrial Applications
Order the L-com DWDM filter module online now to enhance your fiber optic network's capacity and reliability. Featuring four channels with 100 GHz spacing, LC/UPC connectors, and monitor ports, this module ensures optimal performance in metro transport, inside plant, and regional distribution systems. Its dual fiber design supports multiplexing and demuxing functions, making upgrades simple and efficient. With same-day shipping and comprehensive support, secure your high-quality passive DWDM module from L-com today and improve your communication infrastructure efficiently and reliably.
Get L-com PDW1C04124NN46 today—built for precision and long-lasting durability in fiber optic networks.
