L-COM LCCA30003FT1 SMA Coax Cable
L-com's flexible SMA male to SMA male right angle cable using 402SS Series coax is designed for high-frequency applications up to 18 GHz. It features durable stainless-steel connectors and a heavy-duty boot for extended lifespan. The cable's double shielding with silver-plated copper braid and spiral tape ensures excellent shielding effectiveness greater than 110dB. The flexible design facilitates tight bends, making it suitable for laboratory, automated test systems, and general-purpose RF interconnects. The cable's PTFE dielectric and FEP jacket provide reliable performance in demanding environments. Shipping is same-day for custom and stock configurations.
L-COM LCCA30003FT1 SMA Coax Cable Specifications:
- Frequency Range: 18 GHz
- Impedance: 50 Ohms
- VSWR: 1.41
- Velocity of Propagation: 70 %
- RF Shielding: > 110dB
- Capacitance: 29.4 pF/ft
- Input Power (Peak): 550 Watts
- Length: 1.0 ft
- Diameter: 0.315 in
- Weight: 0.09 lbs
- Cable Type: 402SS Series
- Inner Conductor: Stranded Copper, Silver Plated
- Dielectric: PTFE
- Shield Layers: Silver Plated Copper Tape and Braid
- Jacket Material: FEP, Tan
- Jacket Diameter: 0.163 in
- Minimum Bend Radius: 1 in
- Operating Temperature Range: -55°C to +165°C
- Connectors: SMA Male to SMA Male Right Angle, Gold Plated Brass
- Hex Size: 5/16 inch
- Torque: 12 in-lbs

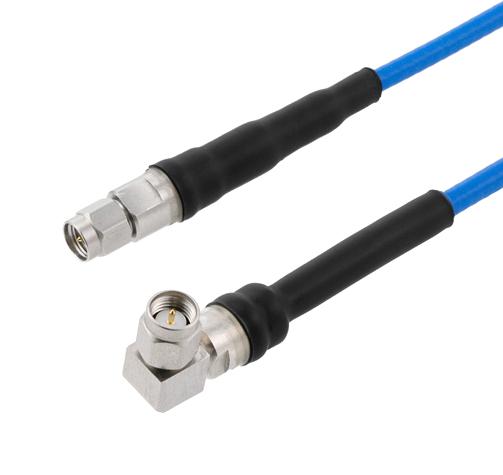

Buy the L-com Series SMA Cable: LCCA30003FT1
Purchase the L-com SMA coax cable assembly online today to enjoy same-day shipping, exceptional shielding effectiveness over 110dB, and durable stainless steel connectors. Designed for high-frequency applications up to 18 GHz, this flexible right angle cable provides reliable connections in tight spaces, testing laboratories, and automated systems. The heavy-duty boot and double shielding ensure long-term performance, making it ideal for demanding RF interconnects. Order now to benefit from quick delivery, custom configurations, and professional support for your RF testing and communication needs.
Get L-com LCCA30003FT1 today—built for high-frequency performance and long-lasting durability in demanding RF applications.
