L-COM LCCA30003FT3 SMA Cable
L-com's LCCA30003-FT3 is a high-quality SMA male to SMA male right angle coaxial cable with a 3.0 ft length, featuring 402SS Series flexible coax with heavy-duty boot. Designed for reliable applications, this cable operates up to 18 GHz with exceptional shielding efficiency over 110dB, making it ideal for tight spaces and flexible RF interconnects. Its durable stainless-steel connectors, PTFE dielectric, and FEP jacket ensure long-lasting performance in laboratory, testing, and general-purpose environments. Suitable for automated test systems and RF applications requiring high frequency and shielding effectiveness.
L-COM LCCA30003FT3 SMA Cable Specifications:
- Frequency Range: up to 18 GHz
- Impedance: 50 Ohms
- Shielding Effectiveness: > 110dB
- Connector Type: SMA Male to SMA Male Right Angle
- Cable Length: 3.0 ft (914.4 mm), custom lengths available
- Cable Diameter: 0.315 in (8 mm)
- Jacket Material: FEP, Tan
- Dielectric Material: PTFE
- Inner Conductor: Stranded Copper, Silver-plated
- Shield Layers: Silver Plated Copper Tape and Braid
- Insertion Loss: max 2.26 dB at 18 GHz
- Velocity of Propagation: 70%
- Operating Temperature: -55°C to +165°C
- Connector Material: Brass with Gold and Nickel Plating
- Heavy Duty Heat Shrink Boot for strain relief
- Repeated Minimum Bend Radius: 1 in (25.4 mm)
- Capacitance: 29.4 pF/ft

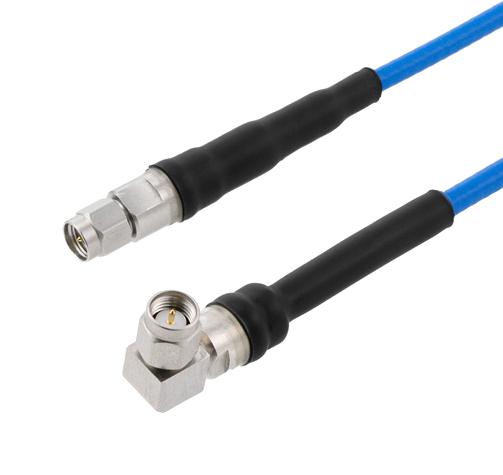

Buy the Buy INFINITI G GLOBAL CONNECTIVITY SMA Male to SMA Male Right Angle Part Number LCCA30003-FT3 Online
Order the INFINITI G SMA Male to SMA Male right angle coaxial cable, part number LCCA30003-FT3, available in 3.0 ft length. This high-performance RF cable features a flexible design, operating up to 18 GHz with excellent shielding greater than 110dB. With durable stainless steel connectors, PTFE dielectric, and heavy-duty boot, it provides reliable connections in tight installations and demanding testing environments. Perfect for laboratory, automated test systems, and general RF applications needing high frequency operation and robust shielding.
Buy INFINITY G SMA Male to SMA Male Right Angle cable, part number LCCA30003-FT3, now and experience unmatched reliability and high-frequency performance.
Frequently Asked Questions
Where can I buy L-COM LCCA30003FT3?
You can click on the BUY or RFQ button to purchase LCCA30003FT3 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30003FT3?
You can download the LCCA30003FT3 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30003FT3?
L-COM
