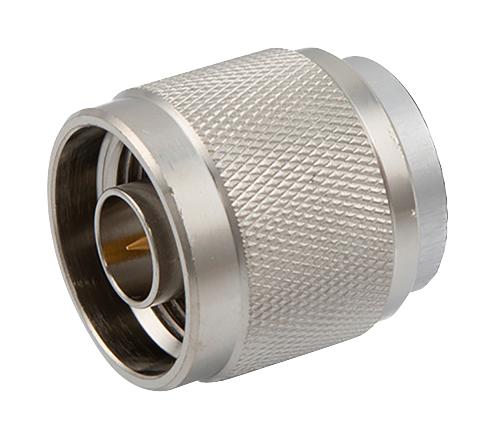

L-COM LCTR1005 RF Dummy Load
The L-com LCTR1005 is a high-quality RF dummy load designed for frequencies up to 6 GHz, handling 2 Watts CW power. Made with an aluminum body and N male connector, it ensures minimal reflection with a VSWR of 1.2:1, making it ideal for RF testing, measurement, and equipment protection. Its compact size, durable materials, and reliable electrical specifications support applications in instrumentation, prototyping, and production systems. The device operates across a wide temperature range from -55°C to 125°C, ensuring performance in diverse environments.
L-COM LCTR1005 RF Dummy Load Specifications:
- Frequency Range: DC to 6 GHz
- Impedance: 50 Ohms
- VSWR: 1.2:1
- Input Power (CW): 2 Watts
- Input Power (Peak): 500 Watts (5us pulse, 0.4% duty cycle)
- Size: Length 0.826 in [20.98 mm], Width 0.787 in [19.99 mm]
- Weight: 0.0551 lbs [24.99 g]
- Connector: N Male
- Material: Body Aluminum with Nickel plating, Brass contacts with Gold plating
- Operating Temperature Range: -55°C to 125°C
Buy the INFINITG Series RF Dummy Load: LCTR1005
Discover the high-performance INFINITG RF dummy load designed for up to 6 GHz and 2 Watts power handling. Its solid aluminum body with N male connectors offers durability and precise impedance matching essential for RF testing, prototyping, and measurement. Compact and lightweight, it operates across a broad temperature range, ensuring reliability in various environments. Perfect for RF engineers seeking accurate results with minimal reflection, this dummy load is a critical component for systems requiring signal termination and protection. Buy online now for quality and performance.
Get INFINITG RF Dummy Load LCTR1005 today—built for precision and long-lasting durability in RF testing and measurement applications.
