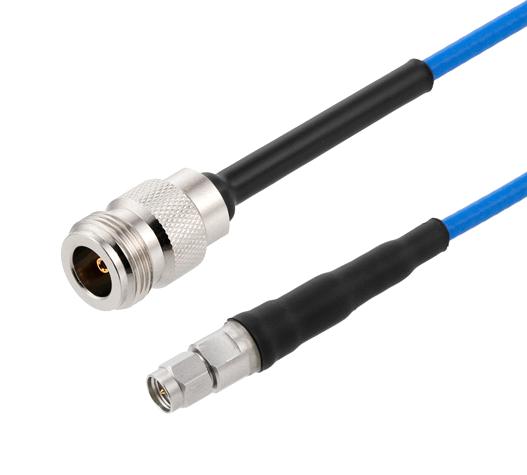

L-COM LCCA30007FT5 RF coaxial cable
L-com'sCableAssemblyLCCA30007isanNfemaletoSMAmale5.0ftcoaxialcableusing402SSSeriescoaxwithHeavyDutyBootthatships same-day.ThisflexibleRFcableisidealforapplicationsrequiringtightbendsandflexure,andoperatesupto18GHz.Thisshieldedassemblyfeaturestainlesssteelconnectorsandadurableheavy-dutybootwithdoubleshieldingcomprisingasilverplatedcopperbraidandspiralstrip.DurableFEPjacketandcustomoptionsincludingconnectorthorntation,heatshrinkbooting,labels,andelectricaltestingareavailableforreliableperformanceinlabandhigh-frequencyapplications.
L-COM LCCA30007FT5 RF coaxial cable Specifications:
- Connector 1: N Female, 50 Ohms, Brass, Gold Plated, MIL-STD-348A
- Connector 2: SMA Male, 50 Ohms, Brass, Gold Plated, MIL-STD-348A
- Impedance: 50 Ohms
- Frequency Range: DC to 18 GHz
- Insertion Loss: Max 1.302 dB at 3 GHz, 1.668 dB at 5 GHz, 2.445 dB at 10 GHz
- Velocity of Propagation: 70%
- Shielding Effectiveness: > 110 dB
- Capacitance: 29.4 pF/ft
- Operating Voltage: 500 Vrms
- Cable Type: 402SS Series coax
- Inner Conductor: Stranded Copper, Silver Plated
- Dielectric: PTFE
- Outer Diameter: 0.315 inches (8 mm)
- Jacket Material: FEP, Tan
- Repeated Minimum Bend Radius: 1 inch (25.4 mm)
- Length: 5.0 ft (152.4 cm)
- Weight: 0.28 lbs (127.01 g)
Buy the L-com LCCA30007 U– Reliable coaxial cable for industrial applications
Order the high-quality RF coaxial cable from L-com today. This flexible 5 ft assembly with N female to SMA male connectors offers excellent shielding, durability, and high-frequency performance up to 18 GHz. Perfect for lab, communication, and industrial applications, it features heavy-duty booting and double shielding for optimal signal integrity. Customize your cable with options like connector orientation or labeling. Quick same-day shipping ensures you get reliable connectivity solutions without delay.
Buy L-com LCCA30007 now and experience unmatched reliability and high-frequency performance for your industrial and lab needs.
Frequently Asked Questions
Where can I buy L-COM LCCA30007FT5?
You can click on the BUY or RFQ button to purchase LCCA30007FT5 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30007FT5?
You can download the LCCA30007FT5 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30007FT5?
L-COM
