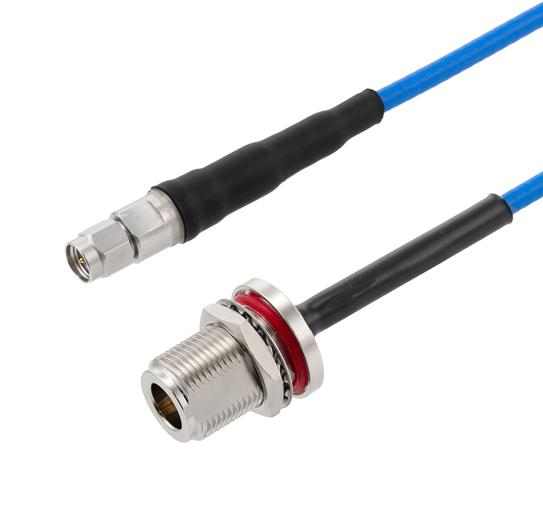

L-COM LCCA30009FT3 RF Coaxial Cable
L-com's SMA male to N female bulkhead cable using 402SS Series coax with a heavy-duty boot offers reliable high-frequency performance up to 18 GHz. Featuring double shielding with silver-plated copper braid over spiral strip, this flexible 3.0 ft cable is designed for demanding applications that require tight bends and durability. Constructed with stainless steel connectors, FEP jacket, and a 50-ohm impedance, it is ideal for RF interconnects, laboratory setups, and automated test systems. Its robust construction ensures long-lasting performance in various industrial and testing environments.
L-COM LCCA30009FT3 RF Coaxial Cable Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- Connector 1: SMA Male, Brass, Gold Plated
- Connector 2: N Female Bulkhead, Brass, Gold Plated
- Cable Type: 402SS Series coaxial cable
- Shielding: Silver-plated copper braid over spiral strip, Effectivity > 110dB
- Dielectric: PTFE
- Inner Conductor: Stranded copper, Silver plated
- Jacket Material: FEP, Tan
- Cable Length: 3.0 feet
- Cable Diameter: 0.163 inches
- Maximum Insertion Loss: 0.864 dB at 18 GHz
- Velocity of Propagation: 70%
- Operating Voltage: 500 Vrms
- Bend Radius: 1 inch
- Weight: 0.24 lbs
- Temperature Range: -55°C to +165°C
- Jacket Material: FEP with Heavy Duty Heat Shrink Boot
Buy the L-com LCCA30009-FT3 – Reliable RF Coaxial Cable for Industrial Applications
Purchase the L-com LCCA30009-FT3 RF coaxial cable online today for dependable high-frequency connectivity. Designed for industrial, laboratory, and automated test system use, this 3-foot flexible cable features SMA male to N female bulkhead connectors, with a maximum frequency of 18 GHz. Its double shielding ensures excellent signal integrity with shielding effectiveness over 110dB. The heavy-duty boot and stainless steel connectors provide durability and reliability in harsh environments. Ideal for quick installation, custom configurations, and high-performance RF interconnects, order now for immediate shipment and seamless integration into your projects.
Get L-com LCCA30009-FT3 today—built for precision and long-lasting durability in demanding RF applications.
Frequently Asked Questions
Where can I buy L-COM LCCA30009FT3?
You can click on the BUY or RFQ button to purchase LCCA30009FT3 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30009FT3?
You can download the LCCA30009FT3 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30009FT3?
L-COM
