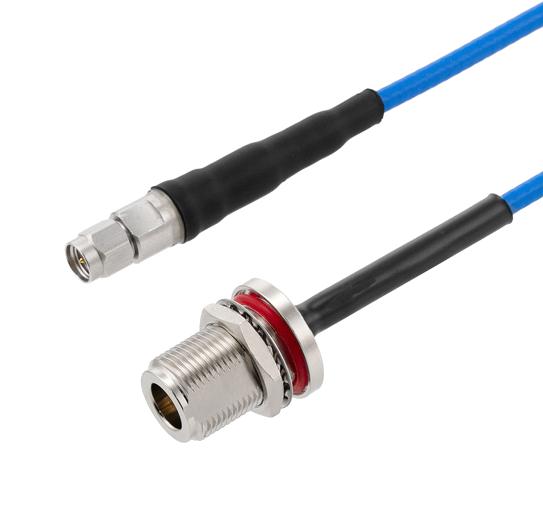

L-COM LCCA30009FT4 RF Flex Cable
L-com's flexible RF cable assembly connects devices with SMA male to N female bulkhead interfaces, featuring 402SS Series coax with a heavy-duty boot, ideal for high-frequency applications up to 18 GHz. Crafted with durable stainless-steel connectors and double shielding, including silver-plated copper braid over spiral strip shielding, it offers exceptional shielding effectiveness over 110dB. The 4.0 ft cable is flexible for tight bends, featuring a PTFE dielectric and FEP jacket for rugged environments. Suitable for laboratory, automated test systems, and rack mount applications, it enables reliable external connections and supports high-performance RF integrations.
L-COM LCCA30009FT4 RF Flex Cable Specifications:
- Frequency Range: DC to 18 GHz
- Shielding Effectiveness: > 110 dB
- Impedance: 50 Ohms
- Cable Type: 402SS Series coaxial cable
- Connector 1: SMA Male, brass, gold plated, MIL-STD-348A compliant
- Connector 2: N Female Bulkhead, brass, gold plated, MIL-STD-348A compliant
- Maximum Insertion Loss: 1.094 dB at 18 GHz
- Velocity of Propagation: 70%
- Capacitance: 29.4 pF/ft
- Operating Voltage: 500 Vrms
- Length: 4 ft (1.22 meters)
- Diameter: 0.315 in (8 mm)
- Weight: 0.27 lbs (122.47 g)
- Jacket Material: FEP, tan
- Inner Conductors: Stranded copper, silver plated
- Shield Layers: Silver plated copper tape and braid
- Repeated Bend Radius: 1 in (25.4 mm)
Buy the Buy INFINITG RF Cable Part Number LCCA30009FT4 Online
Enhance your RF setup with INFINITG's high-quality flexible RF cable assembly. Featuring SMA male to N female bulkhead connectors, 18 GHz frequency range, and robust double shielding, this 4 ft cable ensures reliable connections in laboratory, test systems, and rack mount applications. Crafted with durable stainless-steel components, heavy-duty boot, and precision shielding, it provides excellent signal integrity, flexibility for tight bends, and long-lasting performance. Order online today for fast shipment and optimal RF system performance.
Buy INFINITG LCCA30009FT4 now and experience unmatched reliability and high-frequency performance for your RF testing and connectivity needs.
Frequently Asked Questions
Where can I buy L-COM LCCA30009FT4?
You can click on the BUY or RFQ button to purchase LCCA30009FT4 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30009FT4?
You can download the LCCA30009FT4 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30009FT4?
L-COM
