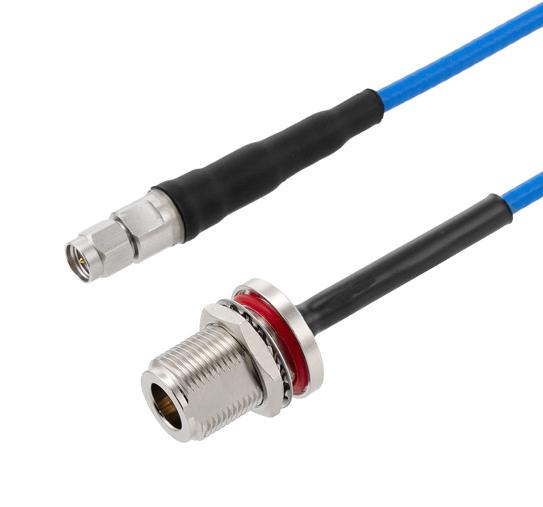

L-COM LCCA30009FT6 RF coaxial cable assembly
L-com's flexible 6-foot coaxial cable assembly connects devices with SMA male to N female bulkhead interfaces, operating up to 18 GHz with exceptional shielding. Crafted with 402SS Series coax, it features double shielding, a FEP jacket, and stainless-steel connectors for durability and high performance. Ideal for RF interconnects, laboratory applications, and automated test systems, this assembly offers easy installation, heavy-duty booting, and customization options to meet diverse requirements, ensuring reliable, low-loss signal transmission in demanding environments.
L-COM LCCA30009FT6 RF coaxial cable assembly Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- Insertion Loss: Max 1.554 dB at 18 GHz
- Shielding Effectiveness: > 110 dB
- Velocity of Propagation: 70%
- Capacitance: 29.4 pF/ft
- Operating Voltage: 500 Vrms
- Cable Type: 402SS Series coax
- Inner Conductor: Stranded copper, silver plated
- Dielectric: PTFE
- Jacket Material: FEP, Tan
- Jacket Diameter: 0.163 inches
- Cable Length: 6 ft (72 inches)
- Connector 1: SMA Male, Brass with gold plating
- Connector 2: N Female Bulkhead, Brass with nickel plating
- Connector specification: MIL-STD-348A
- Mounting: Panel mount with 5/16 inch hex nut
- Operating Temp Range: -55°C to +165°C
- Weight: 0.33 lbs
- Repeated Bend Radius: 1 inch
Buy the Buy INFINITG SMA Male to N Female Bulkhead Cable Part Number LCCA30009FT6 Online
Purchase the INFINITG RF coaxial cable assembly with SMA male to N female bulkhead connectors online today. This versatile 6-foot cable operates up to 18 GHz, featuring exceptional shielding greater than 110 dB, double shielding, and a heavy-duty boot for enhanced durability. Designed for RF interconnects, laboratory setups, and automated testing environments, it ensures low-loss signal integrity. Customization options like connector orientation, labeling, and heat shrink booting are available, with fast same-day shipping and comprehensive electrical testing for guaranteed quality and performance.
Buy INFINITG LCCA30009FT6 now and experience unmatched reliability and performance with a durable, high-frequency RF cable assembly suitable for critical applications.
Frequently Asked Questions
Where can I buy L-COM LCCA30009FT6?
You can click on the BUY or RFQ button to purchase LCCA30009FT6 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30009FT6?
You can download the LCCA30009FT6 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30009FT6?
L-COM
