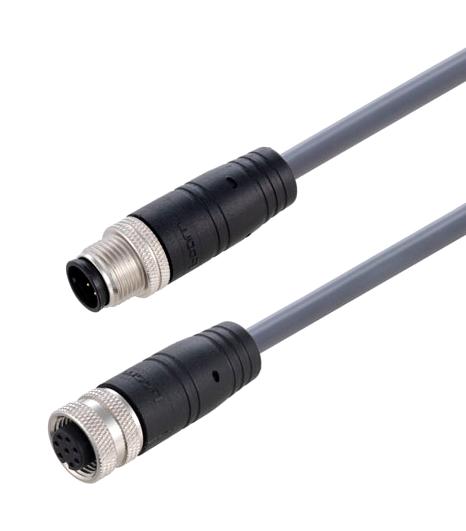

L-COM TRG883C4G1M M12 Cable Assembly
The TRG883C4G1M is a gray molded PVC unshielded cable assembly designed for reliable electrical connections in industrial and telecommunication applications. It features a durable PVC jacket, UL style 2517 screw nut, and 8-position A-coded connectors. The cable consists of 24 AWG stranded tin-plated copper conductors, with a temperature range of -25°C to +105°C and a maximum voltage of 30 V AC/DC. Suitable for wiring in environments requiring IP67 ingress protection, its overall length tolerance is ±10%, ensuring consistency and dependable performance over long-term usage.
L-COM TRG883C4G1M M12 Cable Assembly Specifications:
- Jacket Material: PVC, Gray
- Connector Type: M12, 8-position A-coded male/female
- Conductor Material: Stranded tin-plated copper, 24 AWG
- Temperature Range: -25°C to +105°C
- Voltage Rating: 30 V AC/DC
- Ingress Protection: IP67 (mated)
- Overall Length Tolerance: ±10%
- Cable Length Options: 0.5m, 1.0m, 2.0m, 3.0m, 5.0m, 10.0m
- Jacket UL Style: 2517
- Dimensions: Gold-plated contacts, 8-position A-code, PVC molded hood, nickel-plated brass screw nut
Buy the L-com 883C4G1M – Reliable M12 Cable Assembly for Industrial Applications
Purchase the M12 Cable Assembly today to ensure robust, reliable connections in your industrial or telecommunication projects. This high-quality gray PVC unshielded cable features 8-position A-coded connectors, 24 AWG stranded copper conductors, and a maximum temperature of 105°C. With a voltage rating of 30 V AC/DC and IP67 ingress protection, it is perfect for demanding environments. Available in various lengths with precise tolerances, order now to get fast delivery and ensure your equipment operates seamlessly in harsh conditions.
Order your L-com series TRG883C4G1M today and enhance your industrial wiring with this durable, IP67-rated unshielded cable assembly for reliable performance.
Frequently Asked Questions
Where can I buy L-COM TRG883C4G1M?
You can click on the BUY or RFQ button to purchase TRG883C4G1M from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TRG883C4G1M?
You can download the TRG883C4G1M datasheet or visit the L-COM website for support.
Who is the manufacturer of TRG883C4G1M?
L-COM
