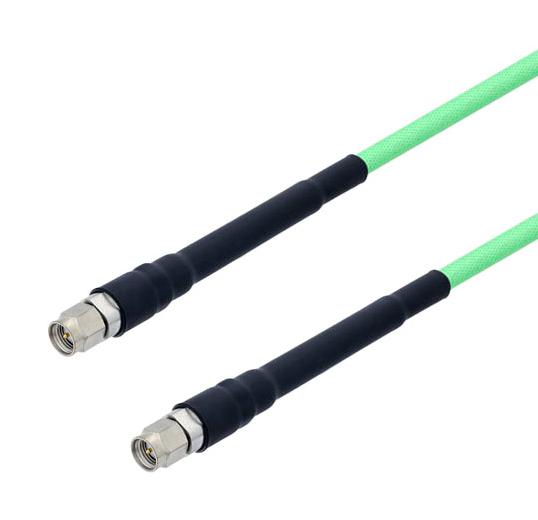

L-COM LCCA30011FT2 RF Cable Assembly
L-com’s LCCA30011-FT2 is a low loss SMA male to SMA male cable assembly with heavy duty heat shrink boot using LL142 coax. It features tape wrapped PTFE dielectric with 80% VoP, offering very low insertion loss up to 18 GHz. The triple shielding ensures excellent shielding effectiveness greater than 95dB. Designed for flexibility, the assembly is ideal for automated test systems, laboratory, antenna range, and long cable run applications. Durable stainless-steel connectors and robust booting extend product lifespan, making it suitable for demanding RF environments.
L-COM LCCA30011FT2 RF Cable Assembly Specifications:
- Frequency Range: 0 to 18 GHz
- Impedance: 50 Ohms
- VSWR: 1.35:1
- Velocity of Propagation: 80%
- RF Shielding: > 95dB
- Capacitance: 25 pF/ft
- Cable Type: LL142 coaxial cable
- Connector Type: SMA Male to SMA Male
- Cable Length: 2 FT
- Diameter: 0.195 in (4.95 mm)
- Weight: 0.097 lbs (44 g)
- Jacket Material: FEP (Green)
- Inner Conductor: Copper, Silver Plated
- Dielectric: Tape wrapped PTFE
- Shield Layers: 3 (Silver Plated Copper Tape and Copper Braid)
- Maximum Temperature: -55°C to +200°C
- Connector Material: Passivated Stainless Steel
- Hex Size: 5/16 inch
- Torque: 10 in-lbs (1.13 Nm)
Buy the INFINITG LCCA30011 U–2013 Reliable RF Cable Assemblies for Industrial Applications
Order the INFINITG LCCA30011-FT2 RF cable assembly today for your RF testing, laboratory, or antenna range needs. This low loss SMA cable provides excellent shielding, durability, and flexibility, supporting frequencies up to 18 GHz. Equipped with heavy-duty heat shrink boots and triple shielding, it ensures optimal performance and long service life. Perfect for demanding environments requiring reliable signal integrity over long distances. Same-day shipping available. Trust INFINITG for high-quality, dependable RF connection solutions tailored to your industrial and technical applications.
Buy INFINITG LCCA30011 now and experience unmatched reliability and high-performance RF cable assemblies for demanding industrial environments.
Frequently Asked Questions
Where can I buy L-COM LCCA30011FT2?
You can click on the BUY or RFQ button to purchase LCCA30011FT2 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30011FT2?
You can download the LCCA30011FT2 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30011FT2?
L-COM
