L-COM TRG504T4T1M Industrial Ethernet Cable Assembly
The M12 shielded connector and high-flex CAT5E cable assembly offer superior durability and reliable connectivity for outdoor and industrial networking applications. Featuring IP68 ingress protection when mated, it includes shielded RJ45 housing, twisted pair 24 AWG stranded tinned copper conductors, low smoke zero halogen shield, and molded thermoplastic polyurethane hood for enhanced environmental resistance. The assembly's construction ensures secure connections with gold-plated contacts and brass nickel-plated screw nuts. Ideal for demanding environments requiring high flexibility, resistance to oil, sunlight, and weld splatter, it supports 125 VAC/VDC voltage ratings, making it perfect for robust industrial Ethernet networking and automation setups.
L-COM TRG504T4T1M Industrial Ethernet Cable Assembly Specifications:
- Connector Type: M12 shielded male
- Cable Type: CAT5E, high flex, stranded 24 AWG twisted pair
- Shielding: Aluminum/polyester foil plus tinned copper braid
- Jacket Material: Thermoplastic elastomer, teal, diameter 0.265 inches
- Insulator: Nylon, black
- Material: Brass nickel-plated screw nuts, phosphor bronze contacts with gold plating
- Ingress Protection Rating: IP68 when mated, P1 only
- Electrical Ratings: Nominal voltage 125 VAC/VDC, Max current 1.54 A
- Operating Temperature: -40°C to +80°C
- Dimensions: Connector length 1.85 inches, cable length options 1m, 2m, 3m, 5m, 10m
- Cable Resistance: Oil, sunlight, weld splatter resistant
- Certification: CE2011/65/EU RoHS compliant
- Compliance: UL 2463, C-UL listed, UL96V-0 polycarbonate housing

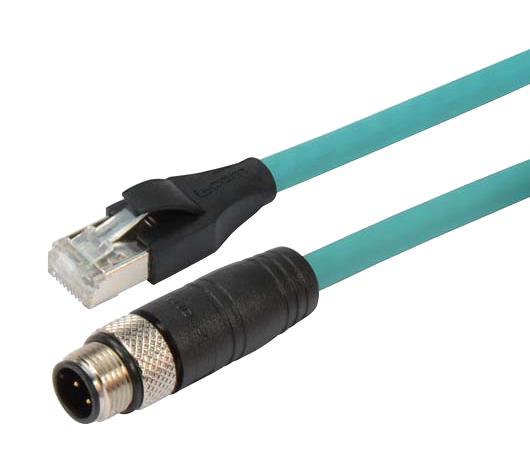

Buy the L-COM Series TRG504T4T: M12 Shielded Ethernet Connector with CAT5E Cable
Experience rugged, high-performance Ethernet connectivity with the L-COM Series TRG504T4T shielded connector and high-flex CAT5E cable. Designed for outdoor, industrial, and demanding environments, this assembly features a durable IP68 rated shielded connector, TPE jacket resistant to oils and sunlight, and gold-plated contacts for reliable signal transfer. Its flexible twisted pair conductors withstand vibration, while corrosion-resistant brass and phosphor bronze components ensure longevity. Suitable for robust industrial networking, automation systems, and demanding applications, it guarantees professional-grade performance and dependable connections in challenging conditions.
Order your L-COM Series TRG504T4T outdoor shielded Ethernet connector with high-flex CAT5E cable today and ensure reliable, industrial-grade network connections.
Frequently Asked Questions
Where can I buy L-COM TRG504T4T1M?
You can click on the BUY or RFQ button to purchase TRG504T4T1M from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TRG504T4T1M?
You can download the TRG504T4T1M datasheet or visit the L-COM website for support.
Who is the manufacturer of TRG504T4T1M?
L-COM
