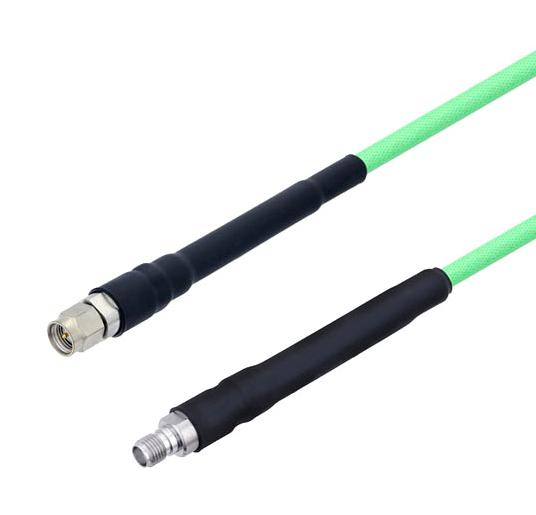

L-COM LCCA30013FT1 RF cable assembly
L-com's LCCA30013-FT1 is a low loss SMA male to SMA female cable assembly with a heavy-duty heat shrink boot, utilizing LL142 coax for flexible RF connections. Operating up to 18 GHz, it features triple shielding with silver-plated copper braid and tape, ensuring shielding effectiveness above 95dB. The cable's PTFE dielectric with 80% VoP offers minimal insertion loss, ideal for high-frequency test systems, antenna ranges, and laboratory applications. Durable stainless-steel connectors and a protective boot extend its lifespan, making it suitable for long cable runs and automated systems requiring reliable performance.
L-COM LCCA30013FT1 RF cable assembly Specifications:
- Frequency Range: 18 GHz
- Impedance: 50 Ohms
- Insertion Loss: 0.18 dB at 1 GHz, up to 0.77 dB at 18 GHz
- Shielding Effectiveness: > 95 dB
- Velocity of Propagation: 80 %
- Capacitance: 25 pF/ft
- Cable Type: LL142 coaxial cable
- Connector Type: SMA Male to SMA Female
- Cable Length: 1 foot
- Cable Diameter: 0.195 inches
- Inner Conductor: Copper, Silver-plated
- Dielectric: Tape wrapped PTFE
- Shield Layers: 3 (Silver Plated Copper Tape, Aluminum Polyester, Silver Plated Copper Braid)
- Jacket Material: FEP (Green)
- Repeated Minimum Bend Radius: 0.975 inches
- Weight: 0.037 lbs
- Operating Temperature: -55 to +200°C
Buy the INFINITG Series RF Cable: LCCA30013 SMA Male to SMA Female 1 FT
Boost your RF setup with the high-quality INFINITG Series LCCA30013 SMA Male to SMA Female cable. Designed for frequencies up to 18 GHz, it features triple shielding for superior signal integrity, a PTFE dielectric with 80% VoP for low insertion loss, and a heavy-duty heat shrink boot for enhanced durability. Perfect for test systems, antenna ranges, and laboratory applications, this 1-foot cable provides dependable high-frequency performance in demanding environments. Shop online and get same-day shipment for quick deployment.
Order your INFINITG Series LCCA30013 SMA Male to SMA Female 1 FT cable today and ensure reliable high-frequency connections with outstanding durability.
