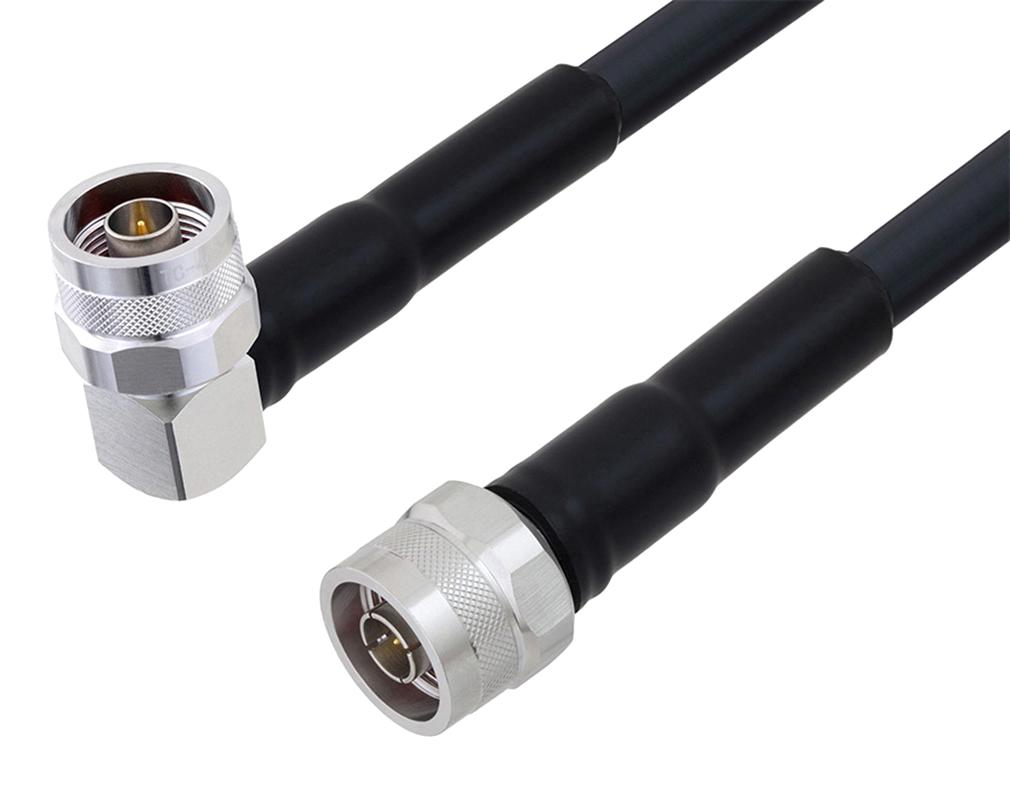

L-COM LCCA30192FT2 RF Cable Assembly
L-com’s LCCA30192-FT2 is a flexible, low-loss N male right angle to N male cable assembly utilizing LMR-400 coaxial cable. Designed for high-frequency applications up to 6 GHz, it features Tinned Copper Braid shielding and PE dielectric for minimal signal loss and excellent shielding effectiveness exceeding 90 dB. With a 2-foot length, it provides easy connections in tight spaces, suitable for land mobile radio, cellular, Wi-Fi, and antenna systems. The assembly is engineered for durability, with high-quality brass connectors, gold plating, and robust environmental ratings.
L-COM LCCA30192FT2 RF Cable Assembly Specifications:
- Frequency Range: Dc to 6 GHz
- Impedance: 50 Ohms
- Cable Type: LMR-400
- Length: 24 in (609.6 mm)
- Diameter: 0.8 in (20.32 mm)
- Shielding Effectiveness: >90 dB
- Connector Type: N Male Right Angle to N Male
- Inner Conductor Material: Copper Clad Aluminum
- Dielectric: PE (F)
- Velocity of Propagation: 85%
- Insertion Loss (at 6 GHz): 0.52 dB
- Capacitance: 23.9 pF/ft (78.41 pF/m)
- Inductance: 0.06 uH/ft (0.2 uH/m)
- DC Resistance Inner Conductor: 1.39 Ohms/1000 ft (4.56 Ohms/km)
- DC Resistance Outer Conductor: 1.65 Ohms/1000 ft (5.41 Ohms/km)
- Jacket Material: PE, Black
- Jacket Diameter: 0.405 in (10.29 mm)
- Minimum Bend Radius: 4 in (101.6 mm)
Buy the INFINITG LCCA30192FT2 – Reliable RF Cable Assembly for Industrial Applications
Order the INFINITG LCCA30192FT2 low-loss N male right angle to N male cable assembly online today. Featuring LMR-400 coaxial cable, shielding over 90 dB, operating to 6 GHz, and durable brass connectors, it ensures reliable signal transfer in confined spaces. Perfect for wireless, radio, cellular, Wi-Fi, and antenna installations, this 2-foot assembly offers exceptional flexibility, shielding, and environmental ratings. Enjoy same-day shipment and custom options including connector orientation, labeling, and RF testing—all designed to meet your precise needs efficiently.
Get INFINITG LCCA30192FT2 today—built for precision and long-lasting durability in wireless and antenna systems.
Frequently Asked Questions
Where can I buy L-COM LCCA30192FT2?
You can click on the BUY or RFQ button to purchase LCCA30192FT2 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30192FT2?
You can download the LCCA30192FT2 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30192FT2?
L-COM
