L-COM LCCA30016FT1 RF Cable Assembly

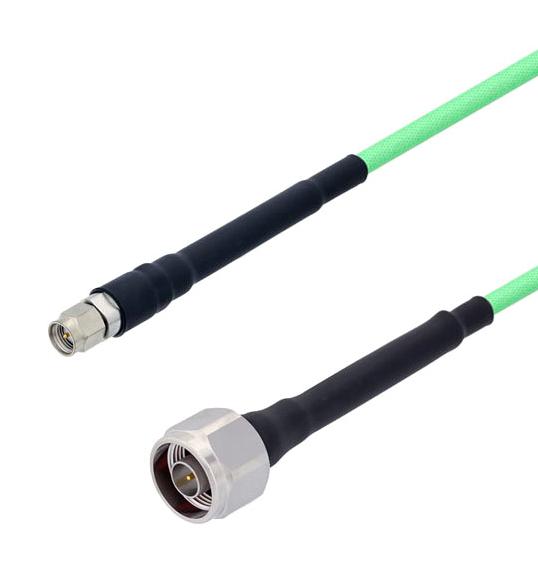

L-com’s LCCA30016-FT1 is a low loss SMA male to N male cable assembly with heavy duty heat shrink boot using LL142 coax, 1 FT. It features a tape wrapped PTFE dielectric with 80% VoP for minimal insertion loss up to 18 GHz. The triple shielding, comprised of silver plated copper braid and tape, provides shielding greater than 95dB. With durable stainless steel connectors and a heavy-duty boot, this flexible RF cable is ideal for automated test systems, laboratory, long cable runs, and antenna applications, ensuring high performance and longevity.
L-COM LCCA30016FT1 RF Cable Assembly Specifications:
- Frequency Range: 18 GHz
- VSWR: 1.35:1
- Velocity of Propagation: 80%
- RF Shielding: 95 dB
- Capacitance: 25 pF/ft
- Cable Type: LL142
- Impedance: 50 Ohms
- Inner Conductor: Solid Copper, Silver plated
- Dielectric: Tape wrapped PTFE
- Shield Layers: 3 (Silver Plated Copper Tape, Aluminum Polyester, Silver Plated Copper Braid)
- Jacket Material: FEP (Green)
- Jacket Diameter: 0.195 in
- Maximum Length: 12 in
- Connector Types: SMA Male, N Male
- Connector Material: Beryllium Copper with Gold over Nickel
- Operating Temperature Range: -55°C to +200°C
- Heavy Duty Heat Shrink Boot
Buy the INFINITG Series RF Cable: Low Loss SMA Male to N Male Cable Assembly LCCA30016-FT1
Purchase the INFINITG Series RF Cable Assembly with SMA to N connectors, featuring low loss LL142 coax, heat-shrink boot, excellent shielding, and high-frequency operation to 18 GHz. Designed for demanding RF applications, this 1-foot flexible cable offers durability, reliable performance, and precise assembly for automated testing, antenna connections, and laboratory setups. Available for same-day shipping, it ensures you get high-quality, shielded RF interconnect solutions with easy online ordering, excellent electrical performance, and long service life for professional and technical environments.
Buy INFINITG LCCA30016-FT1 now and experience unmatched reliability and performance in RF signal transmission with this durable, wideband, low-loss cable assembly.
