L-COM LCCA30008FT1 RF Coaxial Cable
The L-com N male to N female cable assembly is a 1.0 ft RF coaxial cable utilizing 402SS Series coax to provide high durability and excellent shielding effectiveness greater than 110dB. Operating up to 18 GHz, it features precision stainless steel connectors, a heavy-duty heat shrink strain relief boot, and a flexible FEP jacket for easy routing in tight spaces. Suitable for general purpose, laboratory, and automated test systems, this versatile cable ensures minimal signal loss with an insertion loss max of 0.43 dB at 3 GHz and 0.65 dB at 10 GHz. It is built for durability and high-frequency reliability.
L-COM LCCA30008FT1 RF Coaxial Cable Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- Velocity of Propagation: 70%
- Capacitance: 29.4 pF/ft
- Insertion Loss: Max 0.43 dB at 3 GHz, 0.65 dB at 10 GHz
- Connector Type: N Male to N Female, MIL-STD-348A
- Connector Material: Brass, gold-plated contacts
- Cable Type: 402SS Series coaxial cable
- Jacket Material: FEP, Tan
- Cable Diameter: 0.163 in (4.14 mm)
- Cable Length: 12 in (custom lengths available)
- Weight: 0.2 lbs (90.72 g)
- Operating Temperature: -55 to +165°C
- Shielding: Double shield with silver-plated copper braid and tape
- Maximum Working Voltage: 500 Vrms
- Repeated Minimum Bend Radius: 1 in (25.4 mm)

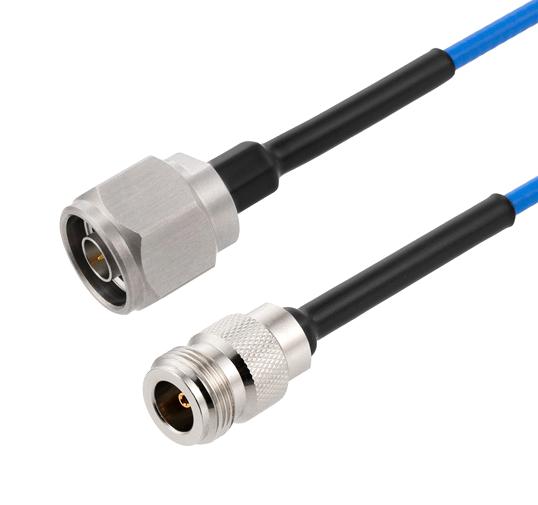

Buy the Buy INFINITG RF Coaxial Cable Part Number LCCA30008 Online
Order the durable INFINITG RF coaxial cable assembly LCCA30008 online today. This high-performance 1.0 ft N male to N female cable operates up to 18 GHz, offering exceptional shielding greater than 110dB for reliable signal transmission. Equipped with precision stainless steel connectors and a heavy-duty heat shrink boot, it ensures long-lasting durability in demanding applications like laboratory testing, automated systems, and general RF interconnects. Fast shipping and expert support make online purchasing easy and convenient for technical professionals.
Buy INFINITG LCCA30008 now and experience unmatched reliability and performance with high-frequency shielding and durable construction.
Frequently Asked Questions
Where can I buy L-COM LCCA30008FT1?
You can click on the BUY or RFQ button to purchase LCCA30008FT1 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30008FT1?
You can download the LCCA30008FT1 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30008FT1?
L-COM
