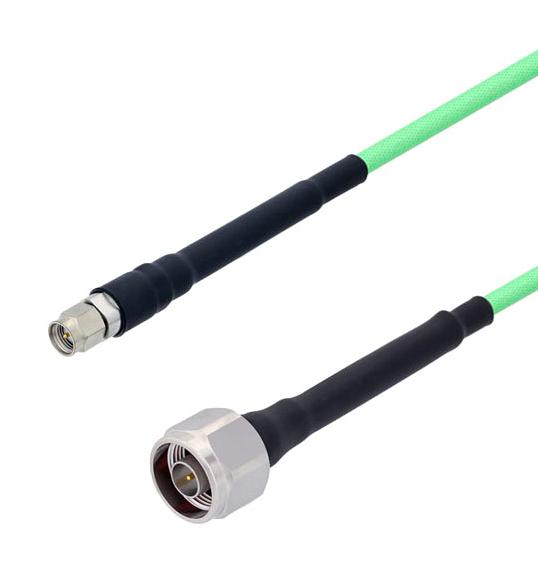

L-COM LCCA30016FT2 RF Cable Assembly
L-com’s LCCA30016-FT2 is a flexible, low-loss SMA male to N male cable assembly with a heavy-duty heat shrink boot using LL142 coax. It operates up to 18 GHz, features a triple shielding effect greater than 95dB, and uses FEP jacket for durability. The coaxial cable employs tape wrapped PTFE dielectric with an 80% VoP, ensuring minimal insertion loss suitable for automated test systems, antenna range applications, and laboratory setups. The rugged stainless steel connectors and long-lasting shieldings make it ideal for long cable runs and high-frequency applications, providing reliable RF performance.
L-COM LCCA30016FT2 RF Cable Assembly Specifications:
- Frequency Range: 18 GHz
- VSWR: 1.35:1
- Velocity of Propagation: 80 %
- RF Shielding: 95 dB
- Capacitance: 25 pF/ft
- Cable Type: LL142
- Impedance: 50 Ohms
- Inner Conductor Material: Copper, Silver Plated
- Dielectric Type: Tape wrapped PTFE
- Shield Layers: 3 (Silver Plated Copper Tape, Aluminum Polyester, Silver Plated Copper Braid)
- Jacket Material: FEP, Green
- Jacket Diameter: 0.195 in
- Cable Length: 2 FT
- Expected Insertion Loss Max.: 0.27 dB at 1 GHz, 1.15 dB at 18 GHz
- Connectors: SMA Male, N Male - Passivated Stainless Steel, Gold over Nickel
- Connector Torque: 10 in-lbs for SMA, 21 in-lbs for N
- Operating Temperature Range: -55°C to +200°C
- Jacket Material: FEP
- Repeated Minimum Bend Radius: 0.975 in
Buy the InfinITG Series RF Cable: LCCA30016-FT2
Order the InfinITG Series RF Cable Assembly LCCA30016-FT2 now to experience exceptional low loss performance up to 18 GHz. This high-quality, flexible SMA to N male cable features a heavy-duty heat shrink boot, triple shielding, and a durable FEP jacket, making it ideal for automated test systems, antenna ranges, and laboratory applications. Designed with high-grade stainless steel connectors and tape-wrapped PTFE dielectric, it ensures minimal insertion loss, excellent shielding, and long-lasting performance for your RF needs. Ships same day for quick deployment.
Get InfinITG Series RF Cable LCCA30016-FT2 today—built for high-frequency reliability and durable connections over long cable runs.
