L-COM LCCA30016FT5 RF Cable Assembly
L-com's LCCA30016-FT5 is a flexible, low loss SMA male to N male cable assembly measuring 5 feet, featuring LL142 coax with tape-wrapped PTFE dielectric for minimal insertion loss. It operates up to 18 GHz, with a shielding effectiveness greater than 95dB and VSWR of 1.35:1. The assembly includes robust stainless-steel connectors, a heavy-duty heat shrink boot, and a high-performance inner conductor. Ideal for automated test systems, laboratory testing, antenna ranges, and long cable runs requiring excellent shielding and low signal loss.
L-COM LCCA30016FT5 RF Cable Assembly Specifications:
- Frequency Range: 0 to 18 GHz
- VSWR: 1.35:1
- Velocity of Propagation: 80%
- RF Shielding: > 95dB
- Capacitance: 25 pF/ft
- Insertion Loss: Max. 0.54 dB at 1 GHz, 2.29 dB at 18 GHz
- Impedance: 50 Ohms
- Cable Type: LL142 coaxial cable
- Connector 1: SMA Male, MIL-STD-348 compliant
- Connector 2: N Male, MIL-STD-348 compliant
- Conductor Material: Copper, Silver plated
- Dielectric: Tape wrapped PTFE
- Jacket Material: FEP, Green
- Jacket Diameter: 0.195 in (4.95 mm)
- Cable Length: 5 ft (1.52 meters)
- Maximum Repeated Bend Radius: 0.975 in (24.8 mm)
- Operating Temperature Range: -55°C to +200°C
- Shield Layers: Silver plated copper tape, aluminum polyester, silver plated copper braid
- Weight: 0.187 lbs (84.82 g)

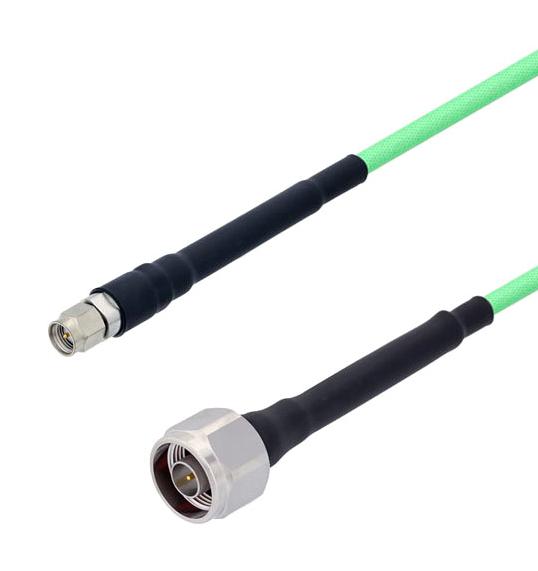

Buy the Buy INFINITG Low Loss SMA Male to N Male Cable Part Number LCCA30016-FT5 Online
Enhance your high-frequency connections with INFINITG's reliable RF cable assembly, featuring low loss LL142 coax, operating up to 18 GHz. This 5-foot SMA to N male cable offers excellent shielding, durability, and flexible design ideal for automated test systems, laboratories, antenna ranges, and long cable runs. With heavy-duty heat shrink booting, stainless-steel connectors, and shielding greater than 95dB, it ensures optimal signal integrity and longevity. Purchase online now for quick delivery and superior performance in your RF applications.
Order your INFINITG Low Loss SMA Male to N Male Cable with Heavy Duty Heat Shrink Boot today and ensure reliable high-frequency connections in your projects.
Frequently Asked Questions
Where can I buy L-COM LCCA30016FT5?
You can click on the BUY or RFQ button to purchase LCCA30016FT5 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30016FT5?
You can download the LCCA30016FT5 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30016FT5?
L-COM
