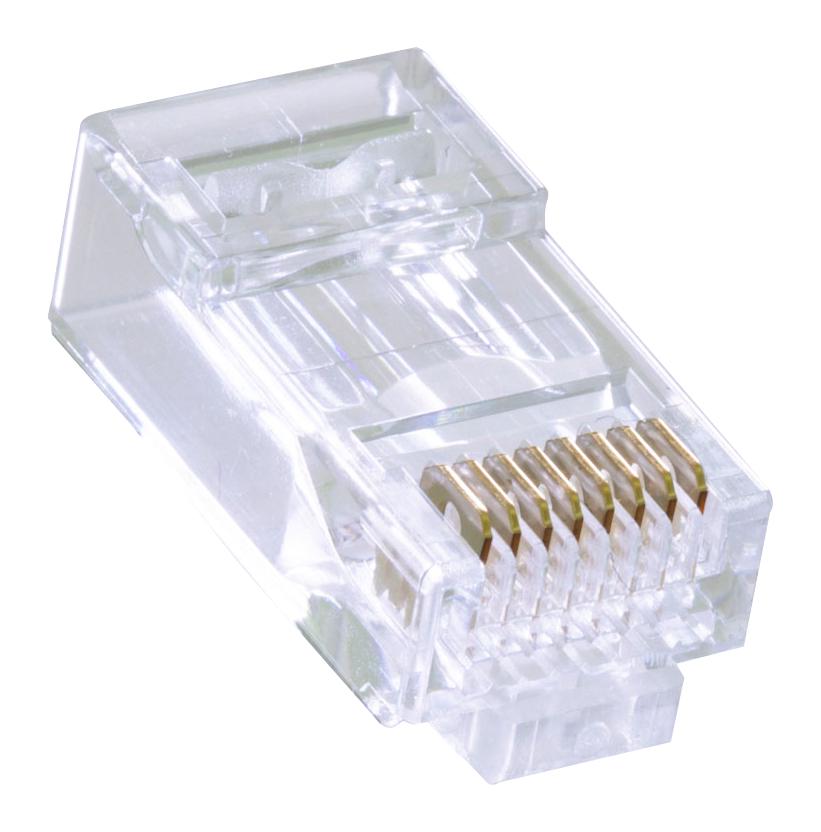

L-COM TDPTC5E Ethernet Connector
The Pull Through RJ45 Plug Cat5e Unshielded is designed for reliable Ethernet connections with easy termination. Made from durable polycarbonate housing with UL94V-0 or UL94V-2 flame ratings, it features copper alloy contact blades and 50 gold plating for enhanced conductivity and corrosion resistance. Capable of handling up to 250 volts AC at 2 amps and with a dielectric withstand voltage of 1000 volts AC for 60 seconds, this plug supports 200 mating cycles and has a tensile strength of 20 pounds. It is compliant with CE2011/65/EU and UL regulations, suitable for high-performance network applications.
L-COM TDPTC5E Ethernet Connector Specifications:
- Electrical: Max 250 volts AC at 2 amps, dielectric withstand voltage 1000 volts AC for 60 seconds, insulation resistance 100 MΩ, termination resistance 20 MΩ max after testing.
- Mechanical: Cable-to-plug tensile strength minimum 20 pounds, durability of 200 mating cycles.
- Material & Finish: Housing polycarbonate UL94V-0 or V-2, transparent color, contact blade copper alloy with 50 gold plating, wire compatibility 24AWG and 26AWG stranded or solid wire (.037 to .040 inch OD).
- Environmental: CE2011/65/EU (RoHS compliant), UL and Reach compliant, packaged in bulk (100 pieces per bag).
- Dimensions & Tolerances: Overall dimensions in inches, tolerance ± 0.025 inch, specific measurements reference standard cables and connector specifications.
- Other: Approvals include UL and non-specific industrial and telecom categories, suitable for structured cabling, network installations, and industrial settings.
Buy the Buy Connectivity RJ45 Plug Part Number TDPTC5E Online
Enhance your network setup with this high-quality Ethernet connector. Designed for durability and easy installation, it features gold-plated copper contacts and a robust polycarbonate housing. This RJ45 plug supports up to 250 volts AC at 2 amps, with a dielectric withstand of 1000 volts AC for 60 seconds, ensuring safe and reliable connections. Perfect for structured cabling systems, it withstands 200 mating cycles and complies with CE, UL, and RoHS standards. Order online now to ensure your network's performance and reliability.
Buy Connectivity RJ45 Plug TDPTC5E now and experience unmatched reliability and high-performance network connectivity.
Frequently Asked Questions
Where can I buy L-COM TDPTC5E?
You can click on the BUY or RFQ button to purchase TDPTC5E from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TDPTC5E?
You can download the TDPTC5E datasheet or visit the L-COM website for support.
Who is the manufacturer of TDPTC5E?
L-COM
