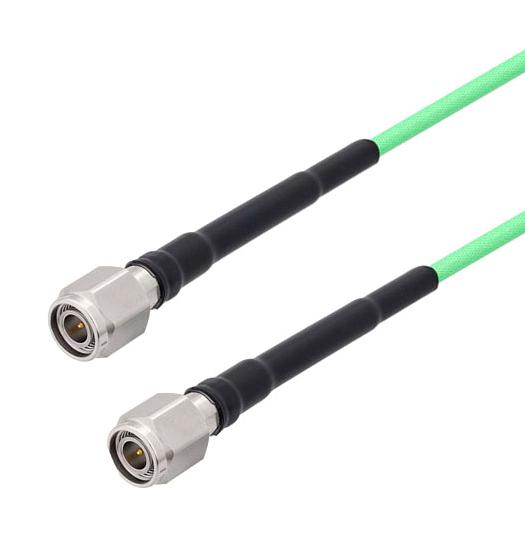

L-COM LCCA30023FT1 RF Cable Assembly
The LCCA30023-FT1 is a flexible, low-loss TNC male to TNC male cable assembly featuring a LL142 coaxial cable with a 1 FT length. It boasts excellent shielding effectiveness over 95dB, operates up to 18 GHz, and includes a heavy-duty heat shrink boot for durability and strain relief. The tape-wrapped PTFE dielectric with 80% VoP ensures minimal insertion loss and high performance in automated test systems, laboratory, and antenna applications. Constructed with silver-plated copper for enhanced conductivity, it’s ideal for long cable runs requiring flexibility and reliable RF connection.
L-COM LCCA30023FT1 RF Cable Assembly Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- Insertion Loss: Max. 0.19 dB at 18 GHz
- VSWR: 1.35:1 maximum
- Shielding Effectiveness: > 95dB
- Cable Type: LL142 coax, Tape wrapped PTFE dielectric with 80% VoP
- Inner Conductor: Copper, Silver plated
- Jacket Material: FEP, Green
- Connector Type: TNC Male to TNC Male
- Connector Plating: Gold over Nickel
- Cable Diameter: 0.195 in (4.95 mm)
- Weight: 0.037 lbs (16.78 g)
- Length: 1 FT
- Shield Layers: Silver plated copper tape, braid, and aluminum polyester
- Maximum Operating Temperature: -55°C to +200°C
- Bend Radius: 0.975 in (24.77 mm)
Buy the INFINITG LCCA30023 U+2013 Reliable RF Cable for Industrial Applications
Order the INFINITG LCCA30023-FT1 today for high-performance RF connectivity. This durable, flexible TNC male to TNC male cable features LL142 coax with excellent shielding over 95dB and operates up to 18 GHz. Its tape-wrapped PTFE dielectric ensures low insertion loss, making it ideal for automated test systems, antenna ranges, and laboratory applications. The heavy-duty heat shrink boot provides strain relief, while the silver-plated copper conductors guarantee reliable conductivity. Perfect for long cable runs requiring flexibility and durable RF connections—order now for fast shipping.
Get INFINITG LCCA30023-FT1 today—built for precision, durability, and superior RF performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy L-COM LCCA30023FT1?
You can click on the BUY or RFQ button to purchase LCCA30023FT1 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30023FT1?
You can download the LCCA30023FT1 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30023FT1?
L-COM
