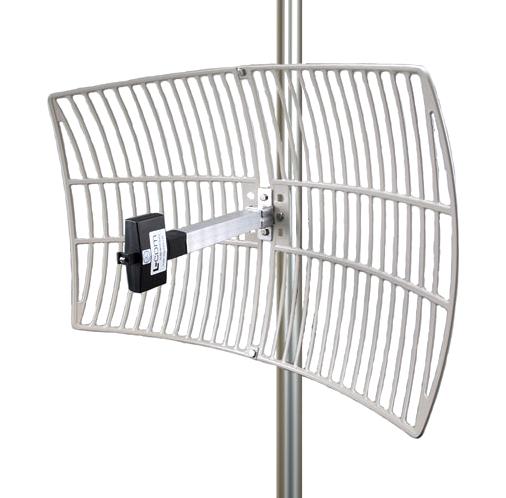

L-COM HG2424EG1NF Wireless Sector Antenna
The L-com HG2424EG-1-NF is a lightweight, high-gain reflector grid antenna designed for long-range wireless applications in the 2.4 GHz to 2.5 GHz band. It features a 24 dBi gain, a durable die-cast aluminum construction, and a UV-stable powder coat finish suitable for all weather conditions. This antenna operates with a 14° vertical and 12° horizontal beamwidth, making it ideal for WLAN backhaul, point-to-point, and point-to-multipoint systems. It comes with N female connectors, mounting hardware, and is easy to assemble for efficient outdoor deployment.
L-COM HG2424EG1NF Wireless Sector Antenna Specifications:
- Frequency Range: 2.4 GHz to 2.5 GHz
- Gain: 24 dBi
- Input VSWR: 1.5:1
- Impedance: 50 Ohms
- Front to Back Ratio: 31 dB
- Horizontal HPBW: 12°
- Vertical HPBW: 14°
- Input Power: 100 Watts
- Size: Length 23.622 in, Width 38.976 in, Height 50 in
- Mounting Mast Diameter: 1.57 to 1.96 in
- Weight: 6.61 lbs
- Operating Temperature: -40°C to +70°C
- Wind Survivability: 124 MPH
- Humidity Range: 5% to 95%
- Construction Material: Die-cast aluminum, UV-stable powder coat finish
- Connectors: N Female
- Certification: Compliant with industry standards
Buy the L-com Series HG Series Antenna: 2.4 GHz to 2.5 GHz 24 dBi Lightweight Die-cast Grid Antenna HG2424EG-1-NF
Enhance your wireless network with the L-com HG2424EG-1-NF high-gain 2.4 GHz antenna, designed for outdoor long-distance applications. Its lightweight die-cast aluminum construction, UV-resistant powder coating, and easy assembly make it a perfect choice for WLAN backhaul, point-to-point, and multipoint systems. Equipped with N female connectors, it offers exceptional performance with a 24 dBi gain, 14° vertical, and 12° horizontal beamwidth for precise signal targeting. Order online today to ensure fast, reliable delivery for your installation needs.
Get L-com HG2424EG-1-NF today—crafted for long-range wireless reliability and durability.
