L-COM LCCA30039FT5 RF Cable Assembly
L-com's LCCA30039-FTS is a low loss N male to N male cable assembly with a heavy-duty heat shrink boot using LL335i coax, 5 feet long, ships same-day. The coax features tape-wrapped PTFE dielectric with an 83% VoP, enabling very low insertion loss up to 18 GHz. Its triple shielding, consisting of silver-plated copper braid layered over copper tape, provides shielding effectiveness greater than 95dB. The connectors are stainless steel, highly durable, and the assembly is suitable for flexible RF interconnect applications including laboratory and antenna range uses, offering excellent performance and long-term durability.
L-COM LCCA30039FT5 RF Cable Assembly Specifications:
- Frequency Range: DC to 18 GHz
- Insertion Loss: Max 0.38 dB at 18 GHz
- VSWR: 1.35:1 maximum
- Velocity of Propagation: 83%
- Shielding Effectiveness: > 95 dB
- Capacitance: 25 pF/ft (82.02 pF/m)
- Impedance: 50 Ohms
- Cable Type: LL335i, tape-wrapped PTFE dielectric
- Inner Conductor: Copper, Silver plated
- Jacket Material: FEP, green
- Length: 5 feet
- Diameter: 0.3 inches (7.62 mm)
- Weight: 0.229 lbs (103.87 g)
- Maximum Repeated Bend Radius: 1.5 inches (38.1 mm)
- Connectors: N Male to N Male, gold-plated Beryllium Copper contacts
- Connector Body: Passivated Stainless Steel
- Operating Temperature Range: -55°C to +200°C

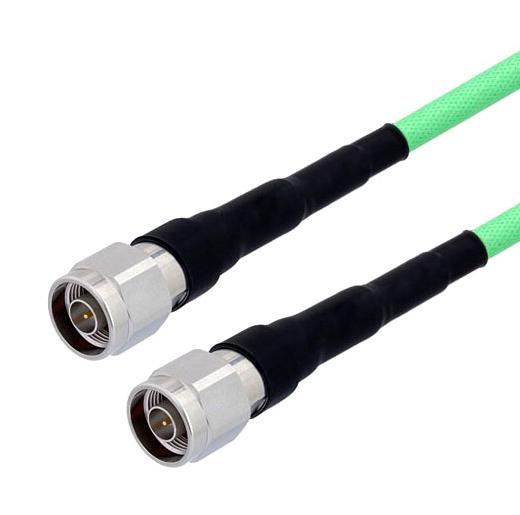

Buy the Buy INFINITG N Male to N Male Cable Part Number LCCA30039-FT5 Online
Order the INFINITG N Male to N Male RF cable assembly from L-com online today. Designed for high-frequency RF interconnects, this 5-foot cable features low insertion loss up to 18 GHz, triple shielding for superior EMI protection, and durable stainless steel connectors with heavy-duty heat shrink boots. Perfect for laboratory, antenna, and test system applications, this flexible cable ensures reliable performance and long-lasting durability. Same-day shipping available for quick deployment and consistent quality assurance for critical RF connections.
Get INFINITG N Male to N Male Cable today—engineered for high-frequency applications with superior shielding and durability.
Frequently Asked Questions
Where can I buy L-COM LCCA30039FT5?
You can click on the BUY or RFQ button to purchase LCCA30039FT5 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30039FT5?
You can download the LCCA30039FT5 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30039FT5?
L-COM
